Description

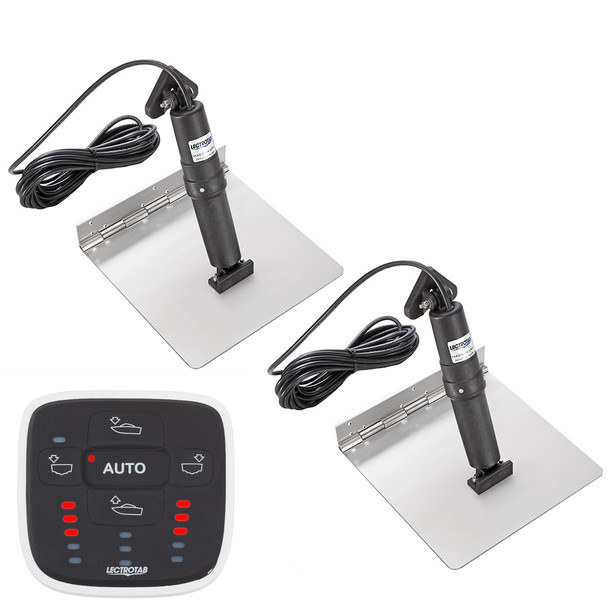

XKA Stainless Steel Trim Tab Kit with ALC-1 Control - 9 x 9
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
- Boat Length - 14' to 19' (4 to 6 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
- Control Mounting Hole Cutout - 2" (50 mm)
- Control Operating Voltage - 12 or 24 V
In the Box:
- One (1) Automatic Leveling Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
The Lectrotab XKA Stainless Steel Trim Tab Kit with ALC-1 Control offers a durable and reliable solution for boat trim adjustment. Crafted from 12 gauge 304 stainless steel, these trim tabs deliver exceptional strength and corrosion resistance, ensuring long-term performance even in harsh marine environments. The design features a continuous rolled and pinned hinge that eliminates the need for welding, providing a robust and maintenance-free assembly. The system includes two high-strength stainless steel tabs and a precision-engineered actuator that is capable of pushing up to 1000 lbs of force, ensuring maximum lift and precise control.
The actuator is housed in a non-metallic, permanently sealed enclosure, preventing corrosion and eliminating oil leaks characteristic of hydraulic systems. With a stroke length of 2.25 inches and a 12-volt DC power supply, the actuator provides smooth, quiet operation and is compatible with both 12V and 24V systems. The kit also features an internal pressure equalization system and an internal brake to prevent unwanted movement during operation or backing down, enhancing safety and stability. The included ALC-1 Automatic Leveling Control automatically adjusts the trim tabs to keep your boat level, correcting side-to-side roll and fore-and-aft pitch for a more comfortable ride, improved fuel efficiency, and easier handling.
Installation is straightforward with the actuator's external non-metallic structure, which can be mounted using standard transom brackets, and the control unit requires a 2-inch mounting hole. The kit is designed for boats ranging from 14 to 19 feet, making it suitable for a variety of small to medium-sized vessels. The system comes complete with the control unit, two stainless steel tabs, actuators with 23-foot cables, and an instruction manual, providing everything needed for a quick and efficient installation. Whether upgrading an existing system or outfitting a new boat, this kit ensures optimal performance and reliability in marine trim management.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation ensures minimal noise during use
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
