Description

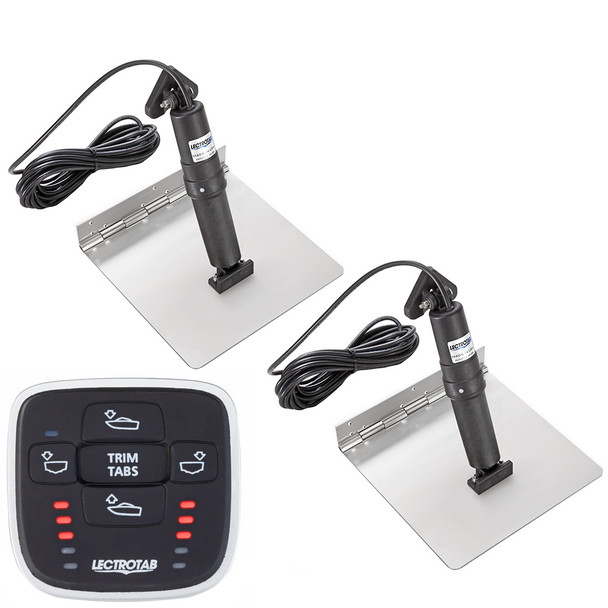

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 18
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
- Boat Length - 21' to 30' (6.5 to 9 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
- Control Mounting Hole Cutout - 2" (50 mm)
- Control Operating Voltage - 12 or 24 V
In the Box:
- One (1) Manual Leveling Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers a durable and reliable solution for boat trim management. Crafted from 12 gauge, 304 stainless steel, the trim tabs provide exceptional strength and corrosion resistance, making them ideal for marine environments. The continuous rolled and pinned hinge design ensures high durability without the need for welding, contributing to a seamless, maintenance-free operation. The non-metallic external structure prevents deterioration from sun exposure and water, ensuring long-lasting performance.
The included MLC-1 microprocessor-based control allows for simultaneous movement of both tabs at the touch of a button. Featuring LED indicators that automatically adjust brightness based on ambient lighting, this control enhances visibility and ease of use. Its compact dimensions and simple installation make it suitable for boats ranging from 21 to 30 feet in length. The kit's actuators are load-tested to push up to 1000 lbs of force, providing maximum lift and precise positioning. The internal pressure equalization system and brake mechanism prevent unwanted tab movement during operation or backing down, ensuring smooth and consistent boat handling.
Designed for easy installation, the actuators are housed in sealed, non-metallic casings that eliminate concerns about oil leaks associated with hydraulic systems. The 12 V DC actuators feature a 2.25-inch stroke and come with 23-foot cables for flexible mounting options. The kit includes stainless steel tabs, actuators, a manual leveling control, and an instruction manual. This comprehensive package delivers a reliable, maintenance-free trim tab system that enhances boat performance and safety in various water conditions.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation for unobtrusive performance
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure resists corrosion and sun deterioration
