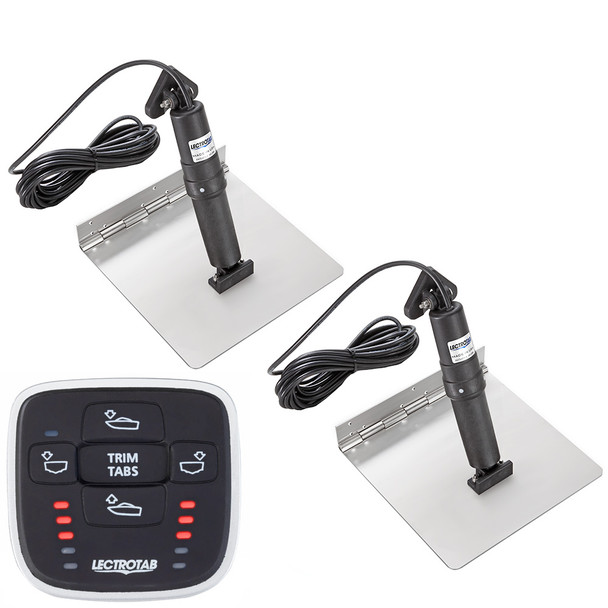

Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control – 9 x 24 Inches

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)


• Boat Length - 24' to 37' (7 to 11 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)


• Control Mounting Hole Cutout - 2" (50 mm)


• Control Operating Voltage - 12 or 24 V

In the Box:

• One (1) Manual Leveling Control


• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control offers a premium solution for precise boat trim adjustments. Crafted from durable 12-gauge 304 stainless steel, the trim tabs provide exceptional strength and corrosion resistance, making them ideal for marine environments. The continuous rolled and pinned hinge design enhances durability by eliminating the need for welding, ensuring long-lasting performance. This kit includes two stainless steel tabs and two high-quality actuators, each with a 23-foot cable, designed to deliver maximum lift force and smooth operation. The non-metallic external structure prevents deterioration caused by sun exposure and water, maintaining reliability over time. The actuators are fully load tested to push 1,000 pounds of force, providing powerful and accurate adjustments, while the internal pressure equalization system ensures consistent performance. The upper ram seal location is protected from damage due to fouled rams or barnacle growth, reducing maintenance needs. The internal brake system prevents unwanted tab movement during transit or backing down, enhancing safety and control. The MLC-1 microprocessor control allows simultaneous movement of both tabs at the push of a button, with LED indicators that automatically adjust brightness based on ambient light, ensuring clear visibility in all conditions. The control unit's compact dimensions make installation straightforward, and it supports both 12 and 24-volt systems. This kit is suitable for boats ranging from 24 to 37 feet in length and is designed for easy installation without the need for inside-the-hull components. Whether for recreational or commercial applications, the Lectrotab XKA trim tab kit provides reliable, maintenance-free performance with quiet operation and maximum lift capacity, making it an essential upgrade for optimal boat handling and efficiency.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation for smooth adjustments

• Actuators are fully load tested to push 1,000 lbs of force

• Non-metallic external structure resists corrosion and sun deterioration
