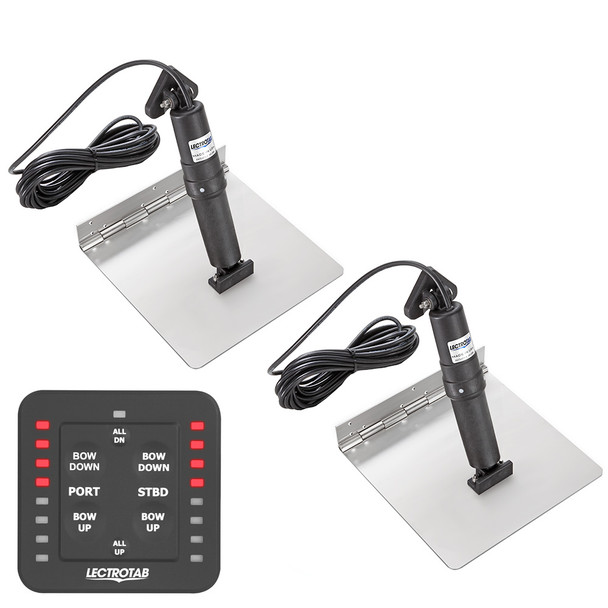

Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control – 12 x 12 inches

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 12

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)


• Boat Length - 18' to 32' (5.5 to 9.5 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)


• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)


• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) One-Touch Control


• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a durable and maintenance-free solution for optimal boat performance. Crafted from 12-gauge 304 stainless steel, these trim tabs provide unmatched strength and corrosion resistance, ensuring long-lasting reliability in harsh marine environments. The continuous rolled and pinned hinge design enhances durability by eliminating the need for welding, enabling smooth and consistent operation. The kit includes two stainless steel tabs and fully load-tested actuators capable of exerting up to 1000 pounds of force, allowing precise control and maximum lift for boats ranging from 18 to 32 feet in length. The actuators are housed in a sealed, non-metallic exterior that prevents corrosion and deterioration caused by sun exposure or submersion, ensuring a maintenance-free experience. The internal pressure equalization system and brake mechanism prevent unwanted tab movement, providing stability during operation, whether underway or backing down. The 12 V DC actuators feature a 2.25-inch stroke length and come with 23-foot cables for flexible installation. The system is complemented by a compact, easy-to-use one-touch LED control, enabling effortless leveling and adjustment at your fingertips. The control unit's ergonomic design and mounting options make it suitable for a variety of transom configurations. This kit is ideal for boat owners seeking a reliable, corrosion-proof trim tab solution that combines strength, ease of installation, and precise control. The package includes everything needed for installation, including the stainless steel tabs, actuators, one-touch control, and an instruction manual, making it a comprehensive upgrade for your marine vessel.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location prevents damage from fouled rams or barnacle growth

• Utilizes internal pressure equalization system for smooth operation

• Internal brake system prevents unwanted tab movement while underway or backing down

• Quiet operation for unobtrusive performance

• Actuators are fully load tested to push 1000 lbs of force for maximum lift

• Non-metallic external structure resists corrosion and deterioration in sun and water exposure
