Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control – 12 x 18 inches for 20-40 ft Boats

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)


• Boat Length - 20' to 40' (6 to 12 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)


• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)


• Rocker Switch Operating Voltage - 12 or 24 V

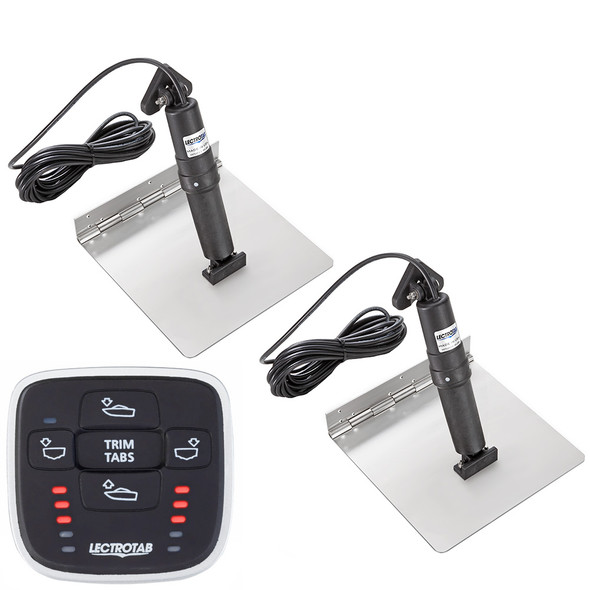

In the Box:

• One (1) One-Touch Control


• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA Stainless Steel Trim Tab Kit offers a robust and corrosion-resistant solution for precise boat positioning. Crafted from 12 gauge 304 stainless steel, these trim tabs feature a continuous rolled and pinned hinge design that enhances strength and eliminates the need for welding. This construction ensures durability and reliability in harsh marine environments. The kit includes a high-quality actuator with a 2.25-inch stroke length, capable of exerting up to 1000 pounds of force, providing maximum lift and control for vessels ranging from 20 to 40 feet in length. The actuator is housed in a sealed, non-metallic casing that prevents corrosion and deterioration from sun exposure or water contact, making it ideal for long-term use without maintenance concerns. The system’s internal pressure equalization and brake features prevent unwanted tab movement during operation or when backing down, ensuring stable and predictable boat handling. The upper ram seal design protects against damage from fouled rams or barnacle growth, maintaining consistent performance over time. The one-touch LED control provides intuitive, easy-to-use operation, allowing you to level your boat effortlessly at the touch of a button. The control unit is compact with a 3-inch by 3-inch footprint, designed for straightforward mounting and operation. The kit includes two stainless steel tabs, two actuators with 23-foot cables, and a comprehensive instruction manual, making installation simple and efficient. Suitable for boats with transom mounting, the system can be powered by 12 or 24 volts, accommodating a wide range of marine electrical setups. This trim tab kit is an excellent upgrade for boaters seeking enhanced maneuverability, stability, and durability without the complications of hydraulic systems. Whether for recreational or commercial vessels, the Lectrotab XKA Trim Tab Kit delivers reliable performance and ease of use, backed by comprehensive product support and documentation.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when underway or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater
