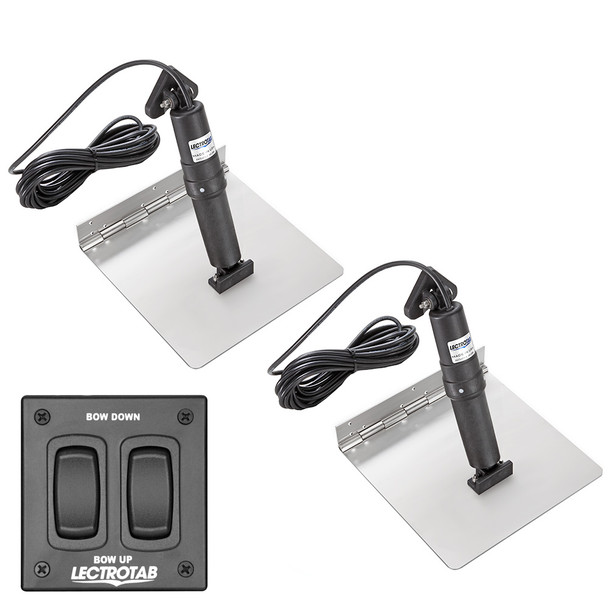

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch – 12 x 18 inches for Boats 20-40 ft

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding


• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• Actuators are fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)


• Boat Length - 20' to 40' (6 to 12 M)


• Trim Tab Material - 12 gauge, 304 Stainless Steel


• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)


• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)


• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch


• Two (2) Stainless Steel tabs


• Two (2) actuators w/23' (7 M) cables


• Instruction Manual

*Sold as a Kit

The Lectrotab XKA stainless steel trim tab kit offers unmatched durability and reliable performance for boats ranging from 20 to 40 feet. Crafted from 12-gauge 304 stainless steel, the trim tabs feature a continuous rolled and pinned hinge design that eliminates welding, providing enhanced strength and longevity. This construction ensures the tabs can withstand harsh marine environments without corrosion or deterioration, thanks to the non-metallic external housing that resists sun and water damage. The kit includes two stainless steel tabs, two actuators with 23-foot cables, a flat rocker switch with improved sealing and an instant stop circuit, and comprehensive installation instructions. The actuators are engineered for quiet operation and can exert up to 1,000 pounds of force, ensuring precise control and maximum lift for optimal boat handling. The internal pressure equalization system and brake mechanism prevent unwanted movement during operation or backing down, ensuring safe and accurate positioning. The design is maintenance-free, with no hydraulic oil to leak, and the actuators are fully load tested to guarantee durability under demanding conditions. This kit is suitable for transom mounting with either standard or low-profile brackets, and the rocker switch is designed to prevent water ingress and accidental breakage. The entire system is self-contained, requiring no components inside the boat, simplifying installation and reducing potential maintenance issues. This premium trim tab kit is ideal for boat owners seeking a high-performance, corrosion-resistant solution that provides precise control, long-term reliability, and easy installation for vessels up to 40 feet in length.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation for smooth performance

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure resists corrosion and deterioration in sun and water
