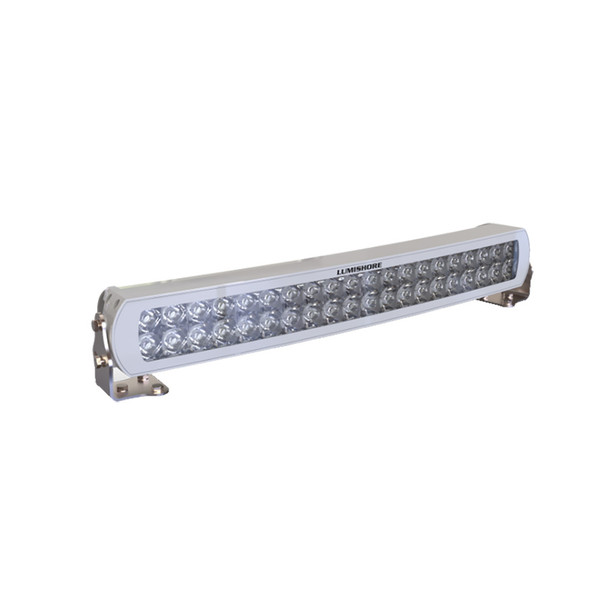

Lumishore 20-inch Curved Light Bar with White LED - Marine-Grade Waterproof Illumination

20 Curved Light Bar - White

Lumishores collection of Light Bars is designed to offer a high-intensity light source, covering a wide area.

The 20 (60cm) Light Bar generates a powerful 15,000 fixture lumens of crisp, white light to illuminate the hardest to see places.

Designed to withstand the harshest marine environments, completely water-tight (IP68 compliant) and housed in marine-grade powder-coated aluminium. These sleek, low-profile Light Bars enhance your boats fit-out, even when not in use.

Specifications:

• Available Colors: White (5000 K)


• Lumens: 33,750


• Fixture Lumens (White): 15,000


• Number Type Of LED: 40 x 10W White LED


• LED Power - HICOB Array: Yes


• Typical LED Life: 50,000+ Hours


• Warranty: 3 Years


• User Control Options: On/Off Switch (Third-party supplied) ECLIPSE Command Center EOS-LUX Command Center


• Electrical Installation: Simple 2 Wire Connection (3 Wires when used with ECLIPSE Command Center, or EOS-LUX Command Center)


• Housing Type: Powder Coated Aluminium Body with Makrolon Lens

The Lumishore 20-inch Curved Light Bar (Part Number: 010-04462-00) is engineered to deliver high-intensity illumination for marine applications. Featuring 40 white 10W LEDs, this light bar produces a total of 15,000 fixture lumens, providing bright, crisp white light ideal for illuminating even the hardest-to-see areas on your vessel. Its sleek, low-profile design seamlessly integrates into your boat’s fit-out, enhancing both aesthetics and functionality.

Constructed from marine-grade powder-coated aluminum with a Makrolon lens, the Lumishore 20-inch Curved Light Bar is built to withstand the harshest marine environments. It is fully water-tight with an IP68 rating, ensuring reliable performance in wet conditions. The fixture is designed for easy electrical installation, requiring only a simple two-wire connection, with optional third-party control options such as the ECLIPSE Command Center or EOS-LUX Command Center for enhanced control.

Long-lasting and durable, this light bar boasts a typical LED lifespan of over 50,000 hours, making it a cost-effective lighting solution for marine adventures. The fixture includes a 3-year warranty, reflecting Lumishore's commitment to quality. Whether used for navigation, deck illumination, or auxiliary lighting, this curved light bar provides exceptional brightness and reliability to meet demanding marine lighting needs.

Features:

• High-intensity white LED light output: 15,000 fixture lumens for broad illumination

• Durable marine-grade construction: powder-coated aluminum housing with Makrolon lens

• Water-tight and weather-resistant: IP68 rated for harsh marine environments

• Long-lasting LED lifespan: over 50,000 hours of reliable operation

• Simple electrical installation: two-wire connection with optional third-party control compatibility

• Sleek, low-profile design: enhances boat aesthetics when not in use

• Available in white (5000K): provides crisp, natural white light

• 3-year warranty: ensuring long-term performance and support
