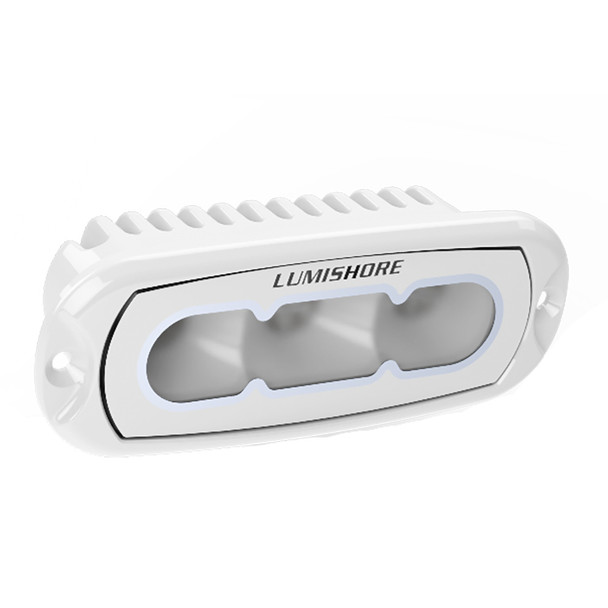

Lumishore ECLIPSE 4-Inch Flush Fit Flood Light - Marine Grade Deck and Cockpit Lighting

ECLIPSE 4 Flood Light Flush Fit

Delivering 1,500 fixture lumens of crisp white light, the ECLIPSE 4 Flush Fit Flood Light is built for flush mounting on cabin tops, T-tops, arches, transoms, and radar pedestals.

Its wide 7090 oval beam ensures bright, even coverage for deck lighting, cockpit visibility, or added security. Designed for the harshest marine environments, with IP68 protection and a marine-grade powder-coated aluminum housing. Dimmable as standard.

Specifications:

• Available Colors: White (5500 K)


• Fixture Lumens (White): 1,500


• Number Type Of LED: 3 x 10W White LED


• Control Options: On/Off Switch (Third party supplied), ECLIPSE Command Center, EOS-LUX Command Center, or Compatible MFD


• Electrical Installation: Simple 2-Wire Connection


• Supply Voltage Range: 10.531 V DC


• Max Current Draw 12/24V: 1.7 A/0.9 A


• Beam Angle: 70 - 90 Oval Beam


• Water Ingress Protection Rating: IP68

The Lumishore ECLIPSE 4-Inch Flush Fit Flood Light is designed to provide bright, crisp illumination for marine environments. With a fixture lumen output of 1,500 lumens, this flood light delivers consistent, wide coverage ideal for deck lighting, cockpit visibility, or added security on boats and yachts. Its flush-mounted design allows for seamless installation on cabin tops, T-tops, arches, transoms, and radar pedestals, ensuring a sleek and unobtrusive appearance. Constructed from durable marine-grade aluminum with IP68 water ingress protection, the ECLIPSE 4 stands up to the harshest conditions at sea, resisting corrosion and water intrusion. The light features a 70-90 oval beam angle, providing even illumination across large areas, and is equipped with a standard dimmable function for customized lighting control.
The fixture uses three 10W white LEDs with a color temperature of 5500K, emitting a bright, natural white light. Easy electrical installation is facilitated through a simple two-wire connection, compatible with a variety of control options including on/off switches, ECLIPSE Command Center, EOS-LUX Command Center, or compatible multifunction displays. Operating within a voltage range of approximately 10.5 to 13 V DC, it draws a maximum current of 1.7 amps at 12V and 0.9 amps at 24V, ensuring efficient power consumption. The ECLIPSE 4 is an ideal choice for boat owners seeking reliable, high-performance lighting solutions that combine durability, brightness, and ease of integration for marine applications.
Perfectly suited for demanding marine environments, this flood light enhances safety, visibility, and security, making it a valuable addition to any vessel's lighting system.

Features:

• Fixture lumen output of 1,500 lumens for bright deck and cockpit illumination

• Wide 70-90 oval beam angle for even coverage

• Constructed from marine-grade aluminum with IP68 water ingress protection

• Dimmable as standard for customizable lighting levels

• Uses three 10W white LEDs with 5500K color temperature

• Simple 2-wire electrical connection for easy installation

• Compatible with various control options including third-party switches and marine command centers

• Designed for flush mounting on cabin tops, T-tops, arches, transoms, and radar pedestals

• Operates within a voltage range of approximately 10.5V to 13V DC, with low current draw
