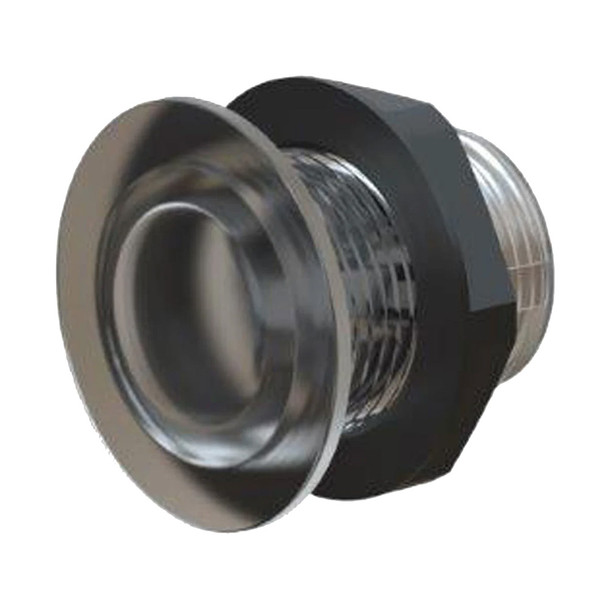

Lumishore ECLIPSE CL30 Courtesy Light - Blue for Marine Walkways and Decks

ECLIPSE CL30 Courtesy Light - Blue

ECLIPSE Courtesy Lights are great for illuminating walkways, stairwells, helm stations, and other design elements of a boat.

Constructed of a durable, clear acrylic body, completely water sealed and IP67 rated.

Available in single color blue and two other color options.

Measuring 33mm (1.3) in diameter, ECLIPSE Courtesy Lights are small, discreet, and easy to install with a 2-wire hookup, flush mountable, and fit almost anywhere onboard.

Features:

• ECLIPSE Collection


• Single Color


• 3 Year Warranty

Specifications:

• LED Type: 3 x 0.5W Blue LEDs


• Customer Control Options: On/Off Switch or ECLIPSE Command Center


• Electrical Installation: Simple 2-Wire Installation


• Supply Voltage Range: 12V DC Only (10 - 15V DC)


• Max Current Draw (12V DC): 0.1A


• Ingress Protection: IP67


• Front Diamater (Bezel): 33mm (1.3)


• Depth: 30.0mm (1.180)


• Hole Diameter for fitting: 25.4mm (1.0)


• Mechanical Installation: Panel Mount

The Lumishore ECLIPSE CL30 Courtesy Light in blue is an ideal solution for illuminating walkways, stairwells, helm stations, and various design elements on boats. Crafted with a durable, clear acrylic body, this light is fully water sealed and rated IP67, ensuring reliable performance in harsh marine environments. Its compact size, measuring approximately 1.3 inches in diameter, allows for discreet installation in almost any location onboard, providing both functionality and aesthetic appeal. The light features three energy-efficient 0.5W blue LEDs, producing a bright, inviting glow that enhances safety and ambiance during nighttime or low-light conditions. It is designed for simple 2-wire electrical installation, enabling quick setup without the need for complex wiring. The ECLIPSE CL30 is compatible with 12V DC power sources within a voltage range of 10 to 15 volts, drawing a maximum of 0.1 amps, which helps conserve battery power on your vessel. The light can be controlled via an on/off switch or integrated into the ECLIPSE Command Center for seamless operation. Its flush mount design with a 25.4mm (1 inch) hole diameter ensures a clean, professional look when installed. Built for durability and long-term performance, the CL30 Courtesy Light comes with a three-year warranty, offering peace of mind for marine applications. Whether used as courtesy lighting or for accentuating specific deck areas, this light combines style, efficiency, and resilience, making it a versatile addition to any boat's lighting system.

Features:

• Part of the Lumishore ECLIPSE Collection for premium marine lighting

• Single color blue LED illumination for clear, vibrant light

• Three energy-efficient 0.5W LEDs provide bright, reliable light output

• Waterproof IP67 rating ensures protection against water and dust ingress

• Simple 2-wire installation for quick setup and maintenance

• Compatible with 12V DC power supply within 10-15V range

• Flush mount design for a clean, integrated look

• Discreet size allows installation almost anywhere onboard

• Includes a 3-year warranty for durability and peace of mind
