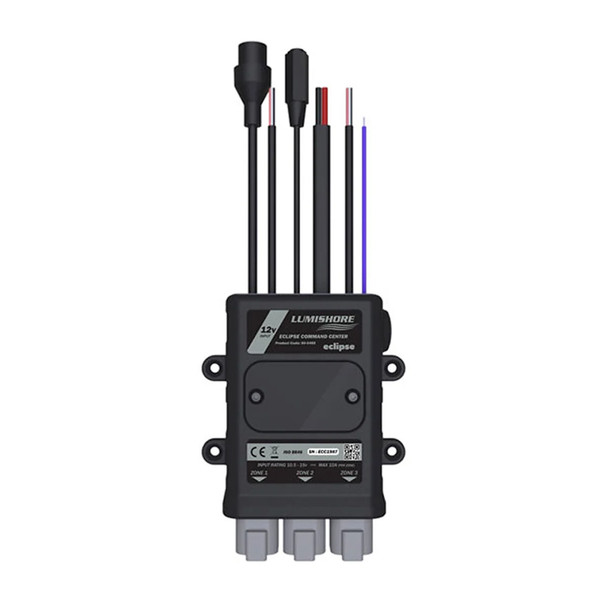

Lumishore ECLIPSE Command Center - Advanced Lighting Control for Marine and RV Applications

ECLIPSE Command Center

The ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.

This is the Worlds first ultra-compact box to include built-in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights, and expansion modules available to increase that capability to up to 6 zones.

Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an Ethernet port. Or control your lighting zones via a simple switch.

Lumishores intuitive interface makes accessing and managing your lighting zones simple!

Specifications:

• Supply Voltage Range: 12V DC Only (10 - 15V DC)


• Max Current Draw (12/24V DC): 30A (3 Zones of 10A)


• Surge Protection: Yes


• Number of Zones: 3 (add 3 more with expansion modules)


• Max Current Per Zone: 10A


• Max No. Lights Per Zone: 16 (total current draw must be 10A or less)


• Low Voltage Protection: Yes


• Reverse Polarity Protection: Yes


• Ingress Protection: IP67


• Simple Installation: Yes


• Plug-and-Play Setup: Yes


• Dimming: Yes


• Color Selection: Yes


• Sound-to-light: Yes


• Strobe: Yes

The Lumishore ECLIPSE Command Center (Part Number: 010-04486-00) provides seamless integration and intuitive control of your lighting systems through your MFD or smart device. This compact unit features three configurable zones that can be customized to manage various light types, with the option to expand up to six zones using additional modules. Its built-in Wi-Fi connectivity enables direct pairing with compatible smart devices, while an Ethernet port allows integration with multifunction displays for a versatile setup. The ECLIPSE Command Center simplifies lighting management, offering a user-friendly interface that makes accessing and adjusting your lighting zones straightforward and efficient.

Constructed with durable IP67 ingress protection, the device is designed to withstand harsh marine environments. It supports a supply voltage range of 12V DC and has a maximum current draw of 30A across its zones. Each zone can handle up to 10A and control up to 16 lights, ensuring ample power for complex lighting configurations. Safety features include low voltage and reverse polarity protection, while surge protection helps safeguard your system against power fluctuations. The unit supports various lighting features such as dimming, color selection, sound-to-light synchronization, and strobe effects, providing extensive customization for your lighting ambiance.

Installation is simple with plug-and-play setup, making this device suitable for both new installations and upgrades. Its compact design allows it to fit easily into tight spaces, making it an ideal choice for marine vessels, RVs, or other mobile applications requiring reliable and flexible lighting control. Whether managing interior mood lighting or exterior illumination, the Lumishore ECLIPSE Command Center offers a comprehensive solution that combines advanced features with ease of use, enhancing your overall lighting experience.

Features:

• Configurable control of up to three lighting zones, expandable to six with additional modules

• Built-in Wi-Fi for direct smart device connectivity

• Ethernet port for integration with multifunction displays

• Supports dimming, color selection, sound-to-light, and strobe effects

• Durable IP67 ingress protection for harsh environments

• Overcurrent, low voltage, and reverse polarity protection

• Simple plug-and-play installation with easy setup
