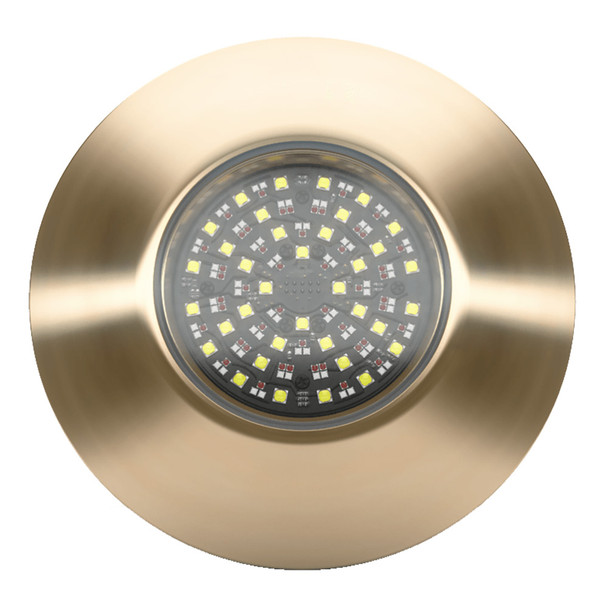

Lumishore EOS TIX1604 Interchangeable Thru-Hull Underwater Light with Full RGBW Color Change and WiFi Control

EOS TIX1604 Interchangeable Thru-Hull

This fully controllable color change TIX1604 underwater light delivers the greatest range of colors, 17,500 verified fixture lumens, and an ultra-wide 110 beam angle for the ultimate halo-effect.

Control colors, modes special effects directly from your MFD and/or the optional Lumishore Display.

Suitable for transom, side, and bottom mounting.

TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.

Specifications:

• Available Colors: Full EOS Color Change (RGBW)


• Lumens: 39,975


• Fixture Lumens (White): 17,500


• Number Type Of LED: White - 36 x 10W, Green - 36 x 3W, Blue - 36 x 3W, Red - 48 x 3W


• LED Power - HICOB Array: Yes


• Typical LED Life: 50,000+ Hours


• Warranty: 3 Years


• User Control Options: Certified MFD Screen EOS-LUX-SUPRA Display WiFi Control from Smart Phone or Connected Device (via MFD or 2204i Wifi)


• Electrical Installation: Plug-and-Play Connections


• Housing Type: Marine Bronze Body with Borosilicate Glass Lens

The Lumishore EOS TIX1604 Interchangeable Thru-Hull underwater light offers advanced lighting capabilities designed for marine applications. This fully controllable lighting fixture provides a stunning color spectrum with full EOS RGBW color change, allowing you to customize your boat’s aesthetic with vibrant, dynamic lighting effects. With an impressive luminous flux of 17,500 fixture lumens and a broad 110-degree beam angle, it creates an expansive halo effect that enhances the vessel's visual appeal while providing ample illumination beneath the waterline.

Installation is simplified thanks to the light's internal LED array and integrated driver, which facilitate servicing from inside the hull and reduce installation complexity. Compatible with transom, side, and bottom mounting, the TIX1604 is versatile for various vessel configurations. Users can control colors, modes, and special effects directly from compatible multifunction displays (MFD) or the optional Lumishore Display, with WiFi connectivity enabling control via smartphones or connected devices for added convenience.

This model features high-quality construction with a marine bronze housing and borosilicate glass lens, ensuring durability and resistance in harsh marine environments. The LED array includes 36 white, 36 green, 36 blue, and 48 red LEDs, each optimized for longevity with a typical lifespan exceeding 50,000 hours. The fixture’s power and color versatility are complemented by a 3-year warranty, making it a reliable choice for both recreational and professional marine applications. Installation is straightforward with plug-and-play electrical connections, and the fixture is designed to deliver consistent, vibrant lighting that can be tailored to your specific preferences, enhancing safety and aesthetics on your vessel.

Features:

• Available Colors: Full EOS Color Change (RGBW)

• Lumens: 39,975 for maximum brightness

• Fixture Lumens (White): 17,500

• LED Types: White (36 x 10W), Green (36 x 3W), Blue (36 x 3W), Red (48 x 3W)

• LED Power: High-Intensity COB Array

• Typical LED Lifespan: Over 50,000 hours

• Control Options: MFD, WiFi via Lumishore Display or Smartphone

• Housing Material: Marine bronze with borosilicate glass lens

• Installation: Transom, side, and bottom mounting suitable

• Warranty: 3 years
