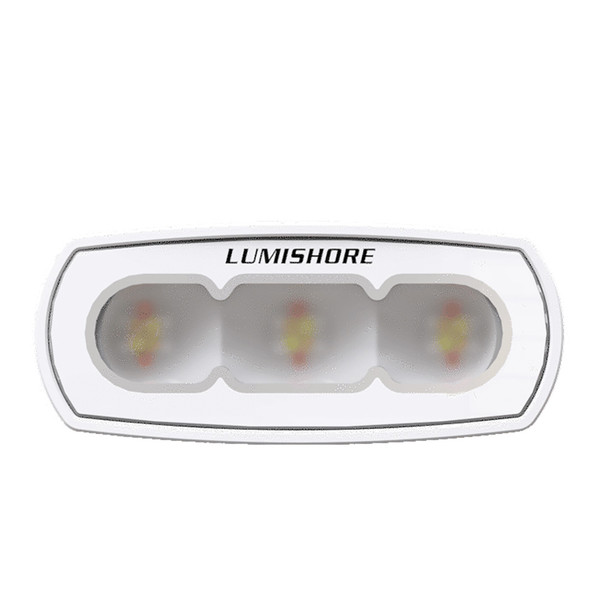

Lumishore LUX 4-inch Flood Light with White Housing and CRGBW Color Control

LUX 4 Flood Light - White Housing

The worlds first CRGBW Flood Lights powerful, precise, and built for the water.

Lumishores 4 LUX Flood Lights deliver 1,050 fixture lumens through a wide 7090 beam, perfect for decks, cockpits, and onboard security. With full CRGBW capability (including warm + cold white), they offer smooth, vibrant color and dimmable control.

Compact and low-profile, they mount easily to T-tops, arches, transoms, and more. Built from marine-grade powder-coated aluminium and IP68 rated for durability.

Control via switch or integrate with your compatible MFD or Lumishore Display.

Specifications:

• Lumens: 2,360


• Fixture Lumens: 1,050


• Number Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel)


• LED Power HICOB Array: Yes


• Typical LED Life: 50,000+ Hours


• Warranty: 2 Years


• User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch


• Electrical Installation: Simple 3 Wire Connection (see installation manual)


• Housing Type: Powder Coated Aluminium Body with Frosted Lens


• Driver: Multi-Channel Internal


• Supply Voltage Range: 10.531 V DC


• Max Current Draw 12/24V: 1.7 A/0.9 A


• Beam Angle: 70 - 90 Oval Beam


• Water Ingress Protection Rating: IP68

The Lumishore LUX 4-inch Flood Light (Part Number 010-04459-00) offers powerful, vibrant illumination designed for marine environments. Featuring a compact, low-profile design, this flood light provides 1,050 fixture lumens through a wide 70 to 90-degree oval beam, making it ideal for deck, cockpit, and onboard security lighting. Built with marine-grade powder-coated aluminum and rated IP68 for water ingress protection, it withstands harsh marine conditions while maintaining optimal performance. The full CRGBW color spectrum—including warm white, cold white, red, green, and blue—allows for versatile lighting options, which can be smoothly dimmed for the perfect ambiance or functional illumination. The fixture includes advanced LED technology with a multi-channel internal driver, ensuring long-lasting operation with over 50,000 hours of LED life. Control options are flexible, enabling operation via switch, Lumishore’s EOS-LUX Command Center, or integration with compatible Multi-Function Displays (MFDs). The installation process is straightforward, utilizing a simple three-wire connection for ease of setup. With a supply voltage range of 10.5V to 36V DC and a maximum current draw of 1.7A at 12V or 0.9A at 24V, this flood light is suitable for a broad range of marine electrical systems. The fixture’s durable frosted lens and powder-coated aluminum housing not only enhance aesthetics but also protect against environmental elements. Whether used for aesthetic lighting or security, the Lumishore LUX 4-inch Flood Light combines robust construction, innovative lighting technology, and customizable control options to elevate your marine lighting experience.

Features:

• Powerful illumination with 1,050 fixture lumens through a wide 70-90 degree oval beam

• Full CRGBW color spectrum including warm white, cold white, red, green, and blue

• Dimmable control for customized lighting ambiance

• Marine-grade powder-coated aluminum housing with frosted lens for durability and aesthetics

• IP68 rated for water ingress protection in harsh marine environments

• Long-lasting LED lifespan exceeding 50,000 hours

• Flexible control options via switch, Lumishore EOS-LUX Command Center, or MFD integration

• Simple three-wire electrical installation compatible with standard marine electrical systems

• Suitable for a variety of mounting locations including T-tops, arches, and transoms

• Compact and low-profile design for unobtrusive installation
