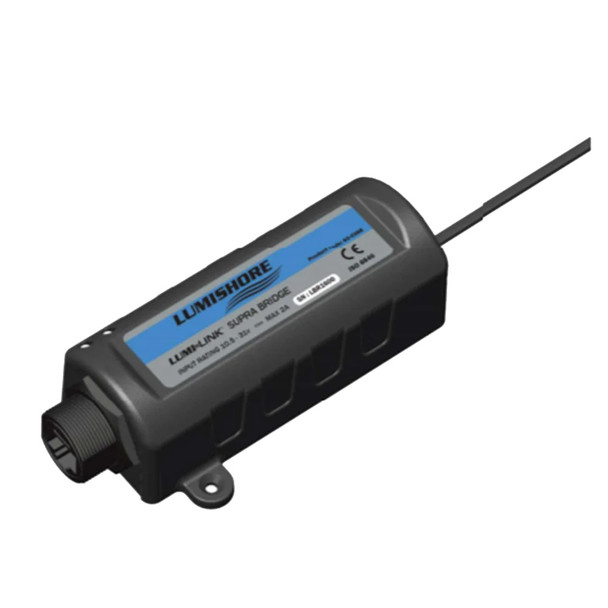

Lumishore SUPRA Bridge Module (Part Number 010-04361-00) for Full Control of SUPRA Series Lighting Systems

SUPRA Bridge Module

The SUPRA Bridge Module allows full feature control of your SUPRA Series light systems from your connected MFD, smart device, and/or optional EOS-LUX-SUPRA Display (excl. SMX23).

The SUPRA Bridge Module configuration genie will find and configure all lighting fixtures in the system when turned on.

Features:

• Full control of your SUPRA lights from a certified MFD or EOS-LUX-SUPRA Display


• WiFi Control via Connected device (via MFD WiFi or Local WiFi Network)


• Specially Designed for Ease of Installation


• Plug and Play Connections

Specifications:

• Ingress Protection Rating: IP67


• Supply Voltage Range: 10.5-31 VDC


• Max Current Draw 12/24V: 2A


• Reverse Polarity Protection: Yes


• Load Dump Protection: Yes


• IOS 8846 (Ignition Protection): Yes

The Lumishore SUPRA Bridge Module (Part Number 010-04361-00) provides comprehensive control over your SUPRA Series lighting fixtures, enabling seamless operation from your connected Multi-Function Display (MFD), smart device, or optional EOS-LUX-SUPRA Display excluding SMX23 models. This module simplifies system management by automatically detecting and configuring all connected lighting fixtures upon activation, ensuring quick setup and reliable control. Its user-friendly design allows for easy installation with plug-and-play connections, making it suitable for both professional and DIY applications.

Designed to offer versatile control options, the SUPRA Bridge Module supports WiFi connectivity, allowing you to operate your lighting system remotely via your MFD or local WiFi network. This feature ensures that you can manage lighting settings conveniently from your preferred device without the need for additional hardware. The module is built with durability in mind, featuring an IP67 ingress protection rating, which guarantees resistance to dust and water ingress, ideal for marine environments.

Powering the module requires a supply voltage ranging from 10.5 to 31 VDC, with a maximum current draw of 2A at 12 or 24 volts. It includes reverse polarity protection, load dump protection, and ignition protection compliant with IOS 8846 standards, ensuring safe operation under various electrical conditions. Whether installed on a boat, yacht, or other vessel, the Lumishore SUPRA Bridge Module offers reliable, full-feature control of your lighting system for enhanced convenience and safety.

Features:

• Full control of SUPRA lights from certified MFD or EOS-LUX-SUPRA Display

• WiFi control via connected device or local WiFi network

• Designed for easy installation with plug-and-play connections

• Automatically detects and configures all lighting fixtures in the system

• Built with IP67 ingress protection for durability in marine environments

• Supports a wide supply voltage range of 10.5-31 VDC

• Maximum current draw of 2A at 12/24V

• Includes reverse polarity and load dump protection

• Compliant with IOS 8846 ignition protection standards
