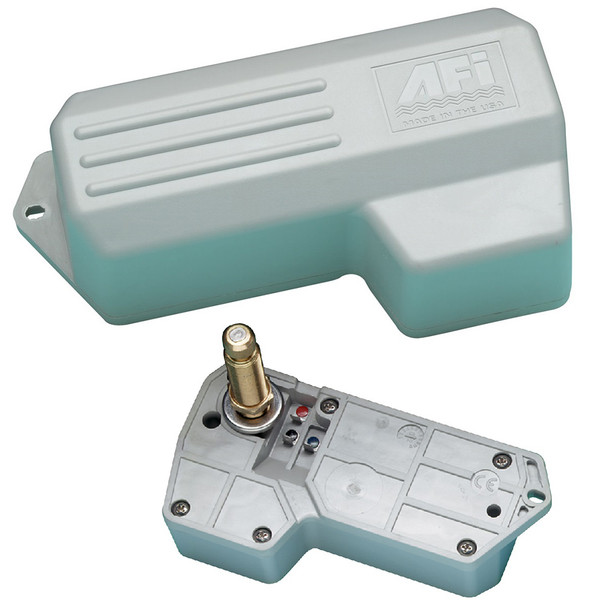

Marinco 1000 Series 12V Wiper Motor with 2.5" Shaft and 65° Sweep for Heavy-Duty Applications

Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 65 Sweep

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree


• 0.625" diameter shaft (16 mm)


• 12 volt heavy-duty motor with anti-rotation drive shaft


• Knurled drive shaft and solid brass arm drive nut


• Coast to park with adjustable right or left self parking


• Retail version includes 5 amp fuse and holder (on/off switch not included)


• RF shielded circuitry


• Weight: 1.75 lbs


• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)


• Measures approximately 6.625" L x 3.375"W x 2" D


• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)


• Stall current: 9.8-10.0 amps


• No load current: 0.8-1.2 amps

The Marinco 1000 Series 12V Wiper Motor is designed for reliable performance in demanding environments. Featuring a fully sealed waterproof housing constructed from UV stabilized, high-impact thermoplastic, this motor ensures durability and protection against harsh elements. Its compact design makes it suitable for a variety of vehicles and equipment, providing efficient wiping with a 65-degree sweep angle. The motor powers an 18-inch Deluxe arm and blade combination at sweep sets of 80 degrees or less, or a 16-inch Deluxe arm and blade at a 110-degree sweep, making it versatile for different windshield sizes and configurations. The 0.625-inch diameter shaft, combined with a knurled drive shaft and solid brass arm drive nut, guarantees secure attachment and smooth operation. The motor is factory pre-set for an 80-degree or 110-degree sweep but can be adjusted to 50, 65, 80, or 110 degrees to meet specific requirements. Its 12-volt heavy-duty motor includes an anti-rotation drive shaft, RF shielded circuitry, and a coast-to-park feature with adjustable right or left self-parking, ensuring optimal operation and parking flexibility. Weighing approximately 1.75 pounds, this motor includes a 5 amp fuse and holder for safety and convenience, though an on/off switch is not included. Available in two shaft lengths—1.5 inches or 2.5 inches—each includes a 0.5-inch knurled arm fitting for easy installation. The unit measures roughly 6.625 inches in length, 3.375 inches in width, and 2 inches deep, making it suitable for various mounting applications. It delivers a stall torque of 55 in-lbs and a stall current between 9.8 and 10 amps, with a no-load current ranging from 0.8 to 1.2 amps, ensuring reliable wiping performance in challenging conditions.

Features:

• Factory pre-set sweep of 80 or 110 degrees, adjustable to 50, 65, 80, or 110 degrees

• 0.625-inch (16 mm) diameter shaft with knurled drive for secure attachment

• 12V heavy-duty motor with anti-rotation drive shaft for stability

• Solid brass arm drive nut for durability and smooth operation

• Coast to park feature with adjustable right or left self-parking

• Includes 5 amp fuse and holder for safety

• RF shielded circuitry to reduce interference

• Available in two shaft lengths: 1.5 inches and 2.5 inches

• Compact dimensions suitable for various mounting configurations

• High stall torque of 55 in-lbs for demanding wiping tasks
