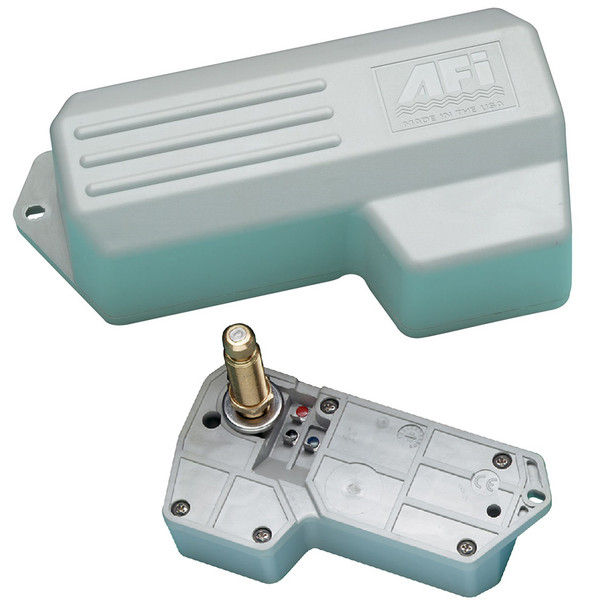

Marinco 37110 Wiper Motor 1000 Series - 12V with 2.5 inch Shaft for Heavy-Duty Vehicles

Wiper Motor 1000 Series - 12V - 2.5" Shaft - 110

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

• Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree


• 0.625" diameter shaft (16 mm)


• 12 volt heavy-duty motor with anti-rotation drive shaft


• Knurled drive shaft and solid brass arm drive nut


• Coast to park with adjustable right or left self parking


• Retail version includes 5 amp fuse and holder (on/off switch not included)


• RF shielded circuitry


• Weight: 1.75 lbs


• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)


• Measures approximately 6.625" L x 3.375"W x 2" D


• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)


• Stall current: 9.8-10.0 amps


• No load current: 0.8-1.2 amps+

The Marinco 37110 Wiper Motor 1000 Series is designed for reliable, heavy-duty windshield wiping in various vehicle applications. Featuring a fully sealed waterproof housing made from UV stabilized, high-temperature, high-impact thermoplastic, this motor ensures durability even in challenging weather conditions. It is compatible with 18-inch Deluxe arm and blade combinations at sweep angles of 80 degrees or less, as well as 16-inch Deluxe arm and blade setups at a 110-degree sweep. This versatility makes it suitable for a wide range of commercial and industrial vehicles. The motor includes a factory pre-set sweep of 80 or 110 degrees, with adjustable settings to customize the sweep angle from 50 to 110 degrees, providing flexibility for different windshield sizes and driver preferences. Equipped with a 0.625-inch diameter shaft, the motor features a heavy-duty 12-volt design with an anti-rotation drive shaft, ensuring stable operation under demanding conditions. Its knurled drive shaft and solid brass arm drive nut contribute to secure and efficient power transfer. The coast-to-park function with adjustable right or left self-parking enhances convenience by automatically positioning the wiper when turned off. The retail version includes a 5-amp fuse and holder for added circuit protection, though an on/off switch is not included. The RF shielded circuitry minimizes electromagnetic interference, safeguarding vehicle electronics. Weighing approximately 1.75 pounds, the motor measures around 6.63 inches long, 3.38 inches wide, and 2 inches deep. Stall torque reaches up to 55 in-lbs, providing ample power for wiping tasks, with a stall current of roughly 10 amps and a no-load current between 0.8 and 1.2 amps. Available with shaft lengths of 1.5 or 2.5 inches (including a 0.5-inch knurled arm fitting), this motor is engineered for durability and performance in demanding environments, making it a reliable choice for commercial vehicle applications.

Features:

• Factory pre-set sweep of 80 or 110 degrees, adjustable to 50, 65, 80, or 110 degrees

• Durable 0.625-inch diameter (16 mm) shaft for secure operation

• Heavy-duty 12V motor with anti-rotation drive shaft for stability

• Knurled drive shaft and solid brass arm drive nut for reliable power transfer

• Coast to park feature with adjustable right or left self-parking

• Includes 5 amp fuse and holder for circuit protection (on/off switch not included)

• RF shielded circuitry to minimize electromagnetic interference

• Compact design measuring approximately 6.63 inches in length and 3.38 inches in width

• Stall torque of 55 in-lbs for effective wiping performance

• Available in shaft lengths of 1.5 inches and 2.5 inches (includes 0.5 inch knurled arm fitting)
