Description

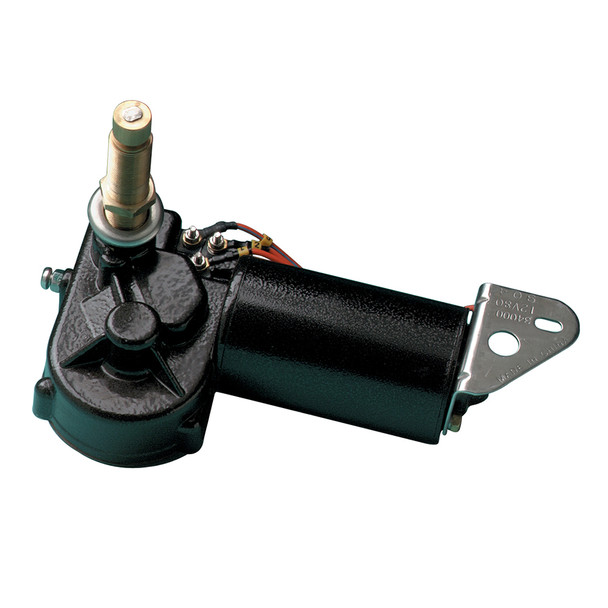

Wiper Motor, MRV, 12V, 3.5" Shaft - 80
The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.
Features:
- Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree
- 0.625" diameter shaft (16 mm)
- Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
- Corrosion-resistant casing
- Heavy-duty motor with right angle drive
- Two-speed motor, can be operated as one speed
- Solid brass knurled drive nut with brass and stainless steel drive shaft
- Adjustable right or left self parking, coast to park
- Retail version includes 5 amp fuse and holder
- Stainless steel fasteners and mounting bracket
- Use with three-position switch (not included)
- Compact size - 7.625" L x 4" W x 2" D
- Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
- Stall current: 11.5-13.0 amps
- No load current: 0.5-1.2 amps
The Marinco MRV 12V Wiper Motor is designed to deliver reliable performance for a variety of vehicle applications. Equipped with a heavy-duty construction and a corrosion-resistant casing, this motor ensures durability even in harsh environments. Its compact size measures approximately 7.6 inches in length, 4 inches in width, and 2 inches in depth, making it suitable for installation in confined spaces. The motor features a 0.625-inch diameter shaft (16 mm), available in three different lengths—1.5 inches, 2.5 inches, and 3.5 inches—allowing for versatile mounting options. The included knurled drive nut, made of solid brass, provides a secure connection to the wiper arm, whether using a deluxe arm/blade combination or a premier arm/blade setup.
Designed for ease of use, the Marinco MRV motor offers factory pre-set sweep angles of 80 or 110 degrees, which are adjustable to 45, 60, 80, or 110 degrees to match specific vehicle requirements. Its two-speed operation can be configured as a single speed for simplified control or used in applications requiring variable speeds. The motor's right-angle drive and stainless steel fasteners contribute to its robustness and long-lasting performance. An integrated coil includes a 5-amp fuse and holder, providing protection against electrical overloads. The motor supports adjustable self-parking functionality, allowing the wiper blade to park on either the driver or passenger side, coasting to a stop for minimal wear.
With a stall torque of 109 inch-pounds and a stall current between 11.5 and 13 amps, the Marinco MRV motor is engineered for dependable operation under demanding conditions. Compatible with three-position switches (not included), it is suitable for a variety of vehicle and equipment applications requiring consistent wiper performance. The use of stainless steel components ensures resistance to corrosion, extending the service life of the motor. Overall, this motor provides a reliable, adaptable solution for powering vehicle wiper systems, combining robust construction with adjustable features for optimal performance.
Features:
- Factory pre-set sweep of 80 or 110 degrees, adjustable to 45, 60, 80, or 110 degrees
- 0.625-inch diameter shaft (16 mm) available in 1.5-inch, 2.5-inch, and 3.5-inch lengths
- Corrosion-resistant casing for durability in harsh environments
- Heavy-duty motor with right-angle drive for reliable operation
- Two-speed motor with single-speed operation option
- Solid brass knurled drive nut with brass and stainless steel drive shaft for secure attachment
- Adjustable self-parking to the left or right, coast to park functionality
- Includes 5-amp fuse and holder for electrical protection
- Stainless steel fasteners and mounting bracket for corrosion resistance
- Compact size measuring approximately 7.6 inches long by 4 inches wide by 2 inches deep
- High stall torque of 109 in-lbs, suitable for demanding applications
- Supports three-position switch operation (not included)
