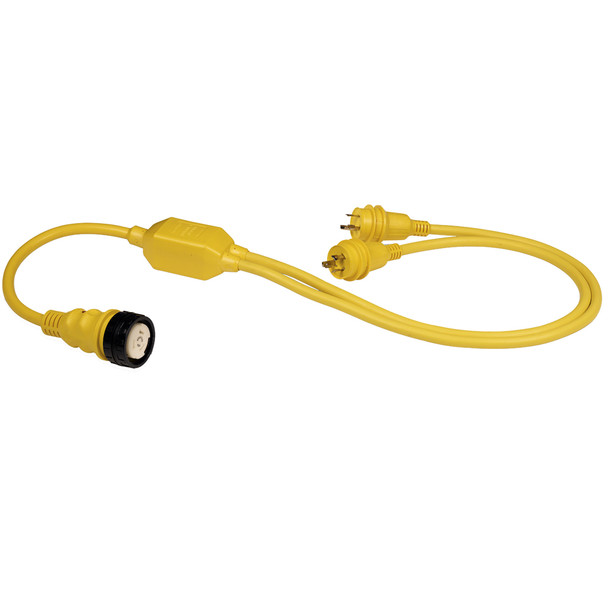

Marinco RY504-2-30 50A Female to 2-30A Male Reverse Y Cable Adapter

Reverse "Y" Adapter

The Reverse "Y" Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.

Boat Side: Female Connector

• 50A 125/250V




• w/Sealing Collar System




• Attaches to boat inlet or cordset

• 2-30A 125V




• Locking




• Attaches to dockside receptacle or cordset

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Marinco RY504-2-30 Reverse "Y" Adapter is designed for safe and efficient power distribution between boat and dock. Featuring two male plugs with integrated power isolation circuitry, this adapter ensures added safety by preventing potential electrical faults. When connected, it provides up to 50 amps at 125/250 volts, making it suitable for situations where only two 30-amp 125-volt receptacles are available. The circuitry isolates the second plug when one is connected, allowing for reliable power sharing without overloading circuits. The adapter's design is compatible with a single power source operating from 208V to 250V between the receptacles, though it does not support 50A, 125V, 3-wire inlets. It is ideal for marine applications, connecting a boat inlet or cordset with a female connector to a dockside receptacle or cordset with a male plug. The boat side features a female connector with a sealing collar system, ensuring a secure and waterproof connection, while the dock side has a locking male plug designed for durability and safety. This adapter supports maximum safety and performance in marine environments, facilitating reliable power transfer while maintaining safety standards. Please note that this product contains chemicals known to the State of California to cause health issues, and users should refer to the provided safety warnings for proper handling and disposal. Designed for ease of use and durability, the Marinco RY504-2-30 is a critical component for boat owners needing a safe and compliant power connection solution at marinas or docks.

Features:

• Power isolation circuitry for added safety during connection

• Provides 50A 125/250V power from two 30A 125V receptacles

• Boat side: Female connector with sealing collar system for waterproof connection

• Dock side: Locking male plug for secure attachment

• Compatible with single power sources from 208V to 250V

• Designed for marine environments and safe power sharing
