Description
Long Stem ForwardScan Transducer w/Sleeve Plug Sonar is the ideal forward looking two dimensional echo-sounder for all power and sail boats that want safety and peace of mind that comes with knowing the depth of the water ahead of the boat. Unlike other Forward-looking sounders, the ForwardScan can display bottom imagery up to 8 times the current depth, it integrates with your onboard NS evo2 or Zeus Touch providing full control at any operating station
Provides water depth information in front of the boat to allow boaters to confidently navigate shallow or poorly charted waters Look ahead view is capable of up to 8 times the depth however the normal operating range is 4 to 5 times the depth. Ex 10' depth would provide a 80' forward view Operates at 180kHz to reduce interference from tradition 200kHz echo sounders. Transmits and receives up to ten times faster than previous forward looking systems providing a real time update. Easy Auto Ranging: Auto forward range and auto depth range default options update the range scales to best suit the viewing of the depth in front of the boat with no button pushing. The deeper the depth range the further forward range. The shallower the depth range the shorter forward range System Overview Unlike other forward looking sonar solutions this is fully integrated to the network allowing control and viewing of the ForwardScan information on multiple displays simultaneously and even via GoFree on a tablet.
Network Options:
Connect directly to Sonar Hub or NSS evo2. ForwardScan Sonar view available on the following displays NSS Evo2, NSO Evo2, Zeus2 Unique Selling Point Look way beyond the bow of your boat for confident navigation of shallow water or poorly charter areas Complete integration maximizes viewing and control Easy to view and operate with unique Bottom Coloring and Auto Scaling Proven installation using a standard 2" stainless thru-hull fitting which allows for a transducer plug design install and removal while boat is in water Flexible networking with direct connect to SonarHub or NSS Evo2.
The following current products will require free software updates to be compatible with the ForwardScan transducer which will be available on the Simrad and B&G support website near availability of the ForwardScan transducer: NSS Evo2 Zeus 2 SonarHub.
The Navico Long Stem ForwardScan Transducer (Part Number: 000-13284-001) is a high-performance, forward-looking sonar designed for both power and sail boats to enhance navigational safety. Its advanced imaging capabilities allow boaters to see beneath the water ahead, providing critical depth and bottom imagery that can extend up to 8 times the current water depth. This feature is particularly valuable when navigating shallow or poorly charted areas, giving crews the confidence to operate in challenging conditions. The transducer operates at 180kHz, which minimizes interference from traditional 200kHz echo sounders, ensuring clearer and more reliable readings. Its real-time update capability transmits and receives signals up to ten times faster than previous systems, delivering instant feedback on water conditions ahead. The system's auto-ranging feature automatically adjusts forward and depth ranges, simplifying operation by optimizing display settings without manual input. Designed for seamless integration, the ForwardScan transducer connects directly to compatible systems such as Sonar Hub or NSS evo2, and its network compatibility allows control and viewing across multiple displays, including tablets via GoFree. Its user-friendly design includes a standard 2-inch stainless steel thru-hull fitting that facilitates easy installation and removal while the boat is in water. This flexible setup supports a range of network configurations, making it suitable for different vessel layouts and requirements. The transducer's unique features, including bottom coloring and auto-scaling, enhance visibility and ease of use, while its robust construction ensures durability in marine environments. The product is compatible with several current navigation systems through free software updates available on the Simrad and B&G support websites, ensuring future-proof operation. The Navico Long Stem ForwardScan Transducer offers a comprehensive solution for safe and confident navigation, providing boaters with a detailed view of the water ahead to avoid hazards and navigate effectively in shallow or unfamiliar waters.
Features:
- Extended Forward View: Capable of displaying bottom imagery up to 8 times the current water depth
- High-Frequency Operation: Operates at 180kHz to reduce interference and improve signal clarity
- Real-Time Updates: Transmits and receives signals up to ten times faster for instant feedback
- Auto Ranging: Automatically adjusts forward and depth range scales for optimal viewing
- Network Compatibility: Connects directly to Sonar Hub, NSS evo2, and supports control on multiple displays and tablets

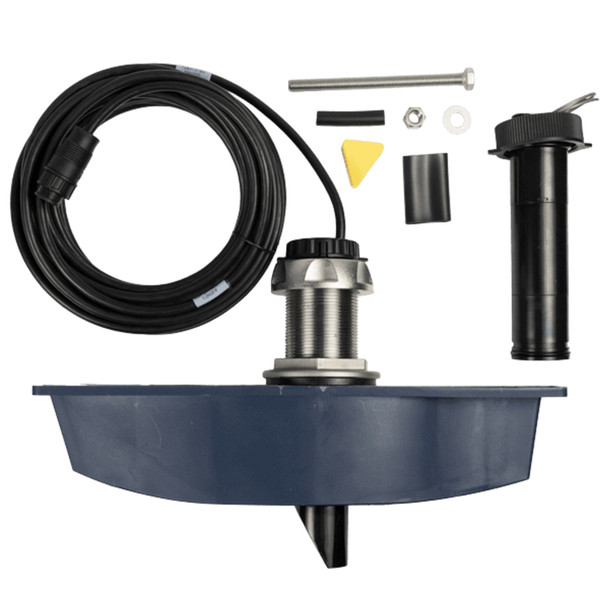

- Durable Installation: Includes a standard 2-inch stainless thru-hull fitting for easy installation and removal
- Advanced Imaging: Features bottom coloring and auto-scaling for enhanced bottom detail visibility
- Versatile Integration: Supports multiple network configurations and future software updates for compatibility
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/60977OM.pdf |
