Description

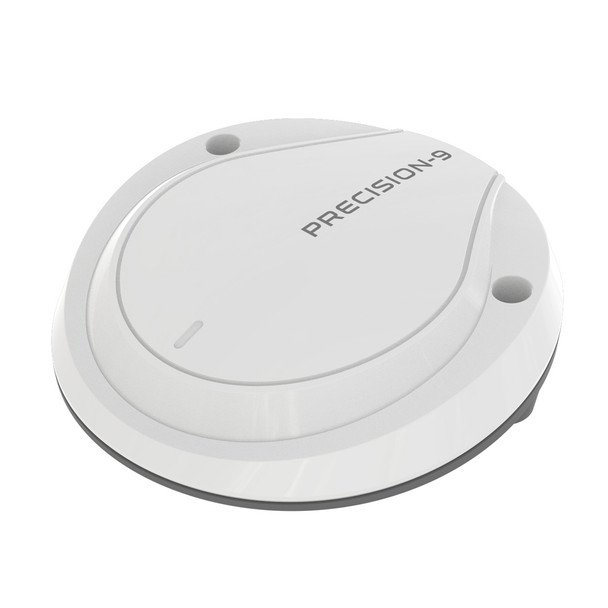

Precision-9 Compass
Precision-9, a solid-state compass that measures motion on nine separate axis alignments. Designed for both recreational and commercial markets.
Advantage of Innovation
The Precision-9 compass D which replaces the RC-42N rate compass D features modern, solid-state technology and components. Customers will notice dynamic improvements in performance of autopilot control and stabilized radar displays, including MARPA target tracking.
NMEA 2000 Heading network, the Precision-9 Compass will output Heading, Rate of Turn (ROT), Roll and Pitch data to networked autopilot, radar, sonar, multifunction displays and other navigational systems.
Solid-State Sensor Technology
The Precision-9 Compass incorporates a solid-state sensor array based on MEMS technology.
Mount Almost Anywhere
An easily adjustable mounting bracket and single-cable NMEA 2000 connectivity allow the Precision-9 Compass to be installed on any vessel, in almost any location.
Key Features
In the box
The Navico Precision-9 Compass is a versatile, solid-state navigation sensor designed for both recreational and commercial vessels. Utilizing advanced MEMS technology, it measures motion across nine axes, providing highly accurate heading, rate of turn, roll, and pitch data. Its modern design replaces the older RC-42N rate compass, offering improved performance in autopilot control, stabilized radar displays, and MARPA target tracking. The Precision-9 seamlessly integrates into NMEA 2000 networks, transmitting critical navigational data to autopilot systems, multifunction displays, sonar, and radar units, enhancing vessel control and situational awareness. Its robust construction and IPX7 waterproof rating make it suitable for external mounting on steel-hulled vessels, and the adjustable mounting bracket allows for flexible installation options, whether on a bulkhead or up-mast. The single-cable NMEA 2000 connectivity simplifies installation, reducing setup time and ensuring reliable data transmission. This compass is an essential component for vessels requiring precise heading information and dynamic motion tracking, supporting safe and efficient navigation in various marine environments.
Features:
- NMEA 2000 heading sensor for non-SOLAS vessels
- Outputs heading, rate of turn (ROT), roll, and pitch data
- Calculates heading and ROT using maximum rotation and motion data
- Incorporates solid-state MEMS sensor technology for accuracy and reliability
- Heading accuracy of +/- 2 degrees after calibration
- Easily adjustable mounting bracket for versatile installation options
- IPX7 waterproof rating suitable for external mounting on steel hulls
- Simple installation with a single NMEA 2000 connection
