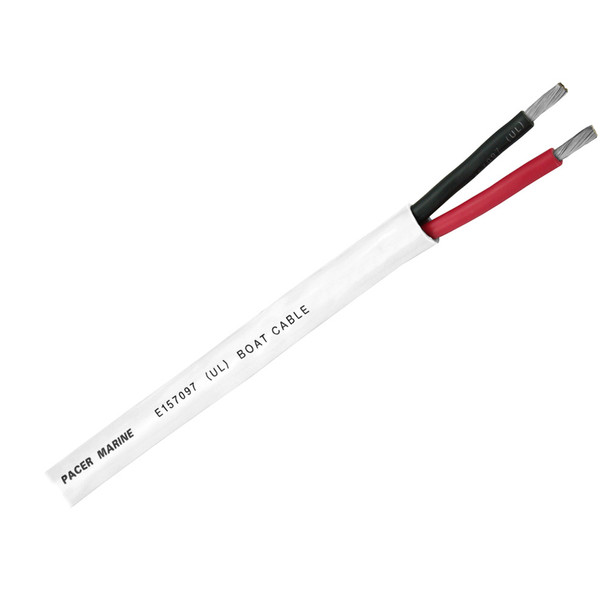

Pacer 10/2 AWG Duplex Boat Cable - 100 ft. Red and Black Conductors for Marine and Low-Voltage Applications

Duplex 2 Conductor Cable - 100 - 10/2 AWG - Round Cable - Red, Black

Duplex Boat Cable is a type of multi-conductor cable used in DC circuits and low-voltage AC applications. Pacer manufactures 10 AWG Duplex boat cables in-house in Sarasota FL USA to ensure the highest quality. First, finely stranded, Type III tinned copper conductors are used. These allow for maximum flexibility. They also prevent corrosion at the same time. The PVC jacket helps 10 AWG Duplex Boat Cable to be flexible. It also serves to prevent moisture or air from building up. How does it do that The voids between wires are completely filled during the extrusion process. This leaves no room for moisture or air to build up. As an added bonus, a talcum powder coating is applied to the interior wires. This coating allows the outer jacket to be easily removed. Just another reason 10 AWG Duplex boat cable is perfect for marine usage.

Features:

• 10 AWG duplex boat cable


• 100 ft. of cable


• No. of Conductors: 2


• Stranded, tinned copper conductors


• Annealed Finely Stranded Tinned Copper ASTM B172 Class K


• Built for durability, flexibility, and longevity in the harshest marine environments


• So flexible that you can tie it into a knot without compromising any of its qualities


• Proprietary insulation ensures the highest level of protection available


• Ease of installation and the longevity of its design have helped solidify this boat cable as the choice of boating professionals

Specifications:

• Conductor Colors: Black Red


• Conductor Stranding: 105/0.0100


• Jacket Color: White


• Jacket Thickness (inch): 2 conductors @ 0.035


• Nom. Cable O.D. (inch): 2 conductors @ 0.265 x 0.455

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper


• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600 V


• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Two conductor boat cable is a durable product for use in DC circuits as well as low voltage AC applications

Compliances:

• UL Standard 1426


• RoHS Compliant


• ABYC: E-11.14


• Coast Guard: 33 CFR part 183


• UL compliant

The Pacer WR10/2DC-100 duplex boat cable is designed for reliable performance in marine environments and low-voltage electrical systems. Crafted in Sarasota, FL, this 10 AWG cable features finely stranded, tinned copper conductors that offer exceptional flexibility and resistance to corrosion, ensuring durability in harsh conditions. The PVC jacket provides flexibility while preventing moisture and air infiltration, thanks to the extrusion process that fills all voids between wires. Additionally, a talcum powder coating inside the cable makes removal of the outer jacket easier, enhancing installation ease. This cable is ideal for DC circuits and low-voltage AC applications, offering a combination of flexibility, protection, and longevity that marine professionals trust. Its robust construction resists acids, alkali, abrasion, flame, gasoline, oil, and moisture, making it suitable for demanding environments. The cable's temperature rating of up to 105°C in dry conditions and a voltage rating of 600V ensure safe and reliable operation across various applications. UL and RoHS compliant, as well as certified by ABYC and Coast Guard standards, this cable meets rigorous safety and environmental regulations. Whether used in boat wiring or other low-voltage electrical systems, the Pacer duplex cable provides a dependable, long-lasting connection solution that simplifies installation and maintenance.

Features:

• 10 AWG duplex boat cable for reliable marine wiring

• 100 ft. length for versatile installation needs

• Two conductors with color coding: red and black

• Stranded, tinned copper conductors for maximum flexibility and corrosion resistance

• Flexible PVC jacket with moisture and air barrier properties

• Talcum powder coating inside for easy jacket removal

• Built for durability, flexibility, and long-term performance in harsh environments

• Proprietary insulation offering high protection levels

• UL, RoHS, ABYC, and Coast Guard compliant for safety and environmental standards
