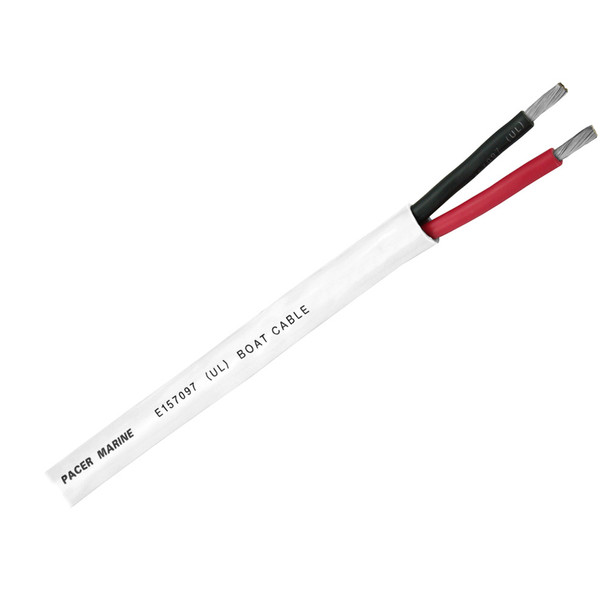

Pacer 12/2 AWG Duplex Boat Cable - 100 Feet, Red and Black Conductors

Duplex 2 Conductor Cable - 100 - 12/2 AWG - Round Cable - Red, Black

Duplex Boat Cable is a type of multiconductor cable used in low-voltage AC applications and DC circuits. Pacer manufactures 12 AWG Duplex boat cables in house in Sarasota FL, USA to guarantee the highest quality. It begins with finely stranded, Type III tinned copper conductors. These conductors allow for maximum flexibility and prevention of corrosion. The PVC jacket helps 12 AWG Duplex Boat Cable with flexibility and also serves to prevent moisture from building up. How does it achieve this The voids between wires are filled completely during the extrusion process. This leaves absolutely no room for air or moisture to build up. To make it even better, a talcum powder coating is applied to the interior wires. This coating will allow the outer jacket to be easily removed. Just another reason 12 AWG Duplex boat cable is perfect for marine usage.

Features:

• 12 AWG duplex boat cable


• 100 ft. of cable


• No. of Conductors: 2


• Stranded, tinned copper conductors


• Annealed Finely Stranded Tinned Copper ASTM B172 Class K


• Built for durability, flexibility, and longevity in the harshest marine environments


• So flexible that you can tie it into a knot without compromising any of its qualities


• Proprietary insulation ensures the highest level of protection available


• Ease of installation and the longevity of its design have helped solidify this boat cable as the choice of boating professionals

Specifications:

• Conductor Colors: Black Red


• Conductor Stranding: 65/0.0100


• Jacket Color: White


• Jacket Thickness (inch): 2 conductors @ 0.035


• Nom. Cable O.D.(inch): 2 conductors @ 0.245 x 0.410

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper


• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600 V


• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Two conductor boat cable is a durable product for use in DC circuits as well as low voltage AC applications

Compliances:

• UL Standard 1426


• RoHS Compliant


• ABYC: E-11.14


• Coast Guard: 33 CFR part 183


• UL compliant

The Pacer 12/2 AWG Duplex Boat Cable is a high-quality, flexible cable designed for marine and low-voltage applications. Crafted with finely stranded, tinned copper conductors, this cable offers exceptional durability and corrosion resistance, making it ideal for the harsh marine environment. Each conductor is insulated with a color-coded PVC jacket, with black and red conductors, ensuring easy identification and installation. The cable’s construction incorporates void-filling during extrusion, preventing moisture buildup and enhancing longevity, while a proprietary talcum coating inside facilitates easy removal of the outer jacket for maintenance or repairs.

Designed to withstand extreme conditions, this 100-ft. duplex cable operates reliably within a temperature range of -20°C to 105°C and is rated for up to 600 volts. Its resistance to acids, alkalis, abrasion, flame, gasoline, oil, and moisture ensures consistent performance in demanding settings. The flexible design allows it to be tied into knots without loss of integrity, making installation straightforward and secure. The cable’s robust construction and compliance with standards such as UL 1426, RoHS, ABYC E-11.14, and Coast Guard regulations make it the preferred choice among boating professionals for both DC and low-voltage AC circuits.

Whether used for wiring a vessel's electrical system or other marine applications, this duplex cable’s superior insulation and high-quality copper conductors guarantee long-lasting performance. The white outer jacket provides a clean, professional appearance, and the cable’s specifications ensure it meets rigorous safety and durability standards. Its versatility and reliability make the Pacer Duplex 12/2 AWG Boat Cable an essential component for marine electrical installations, delivering peace of mind with every connection.

Features:

• 12 AWG duplex boat cable for reliable marine wiring

• 100 feet of durable, flexible cable

• Two color-coded conductors: black and red

• Stranded, tinned copper conductors for corrosion resistance

• Proprietary insulation with moisture prevention features

• Rated for 600 volts and temperature range from -20°C to 105°C

• Resistant to acids, alkalis, abrasion, flame, gasoline, oil, and moisture

• UL 1426, RoHS, ABYC E-11.14, and Coast Guard compliant

• Easy to install with high flexibility and knotting capability

• Designed for low-voltage AC and DC marine applications
