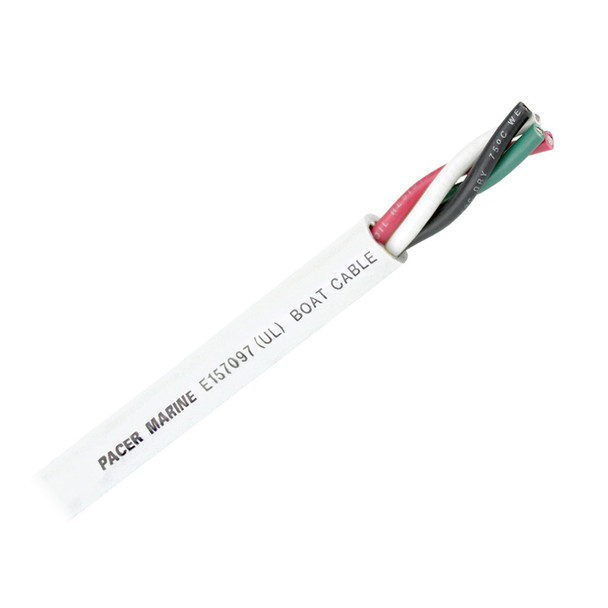

Pacer 12/4 AWG Round Marine Cable - 100 ft, Tinned Copper, Multi-Conductor, Flexible PVC Insulation

Round 4 Conductor Cable - 100' - 12/4 AWG - Black, Green, Red White

Round boat cable is the perfect choice for installation in tight spaces like boat hulls or other similarly confined areas. One reason is the fact that it can bend in any direction. With other cables, your range of motion is limited. Pacer's manufactured 12 AWG round boat cable is UL approved. All Pacer round boat cable is manufactured in Sarasota FL, USA. Its tinned copper conductors are resistant to corrosion. This round boat cable is the perfect choice for multiconductor boat cable and is easy to install for multiple reasons. First, it's built from Type III Class K finely-stranded tinned copper conductors. It also has high-quality flexible PVC insulation and a jacket. Finally, the round shape of this multi-conductor boat cable makes it flexible in any direction. These things work together to make this cable the easiest to install in confined spaces. It also handles the frequent flex and vibration associated with marine environments.

Features:

• 12 AWG round boat cable


• 100 ft. of cable


• No. of Conductors: 4


• Pacer's boat cable is the perfect choice for many marine jobs


• It's ideal for running through sailing spars, poling platforms, and t-tops


• Also, it is the perfect choice for small hulls or other tight areas


• Type III, stranded, tinned copper conductors


• Highly flexible


• Easy to install and organize


• Easily sealed through bulkheads

Specifications:

• Conductor Colors: Black, green, red, white


• Conductor Stranding: 65/.0100


• Jacket Color: Grey


• Jacket Thickness (inch): 4 conductors @ 0.045"


• Nom. Cable O.D. (inch): 4 conductors @ 0.560"

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper


• ASTM B172 Class K


• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600 V


• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Pacer's round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles

Compliances:

• UL Standard 1426 (BC-5W2)


• ABYC: E-11.16


• Coast Guard: 33 CFR part 183


• RoHS Compliant

The Pacer 12/4 AWG round marine cable is designed for reliable electrical connections in confined and demanding environments such as boat hulls, sailing spars, and T-tops. Its flexible, round design allows for easy bending in any direction, making installation in tight spaces straightforward. Constructed with Type III Class K finely-stranded tinned copper conductors, this cable offers excellent resistance to corrosion and vibration common in marine settings. The high-quality PVC insulation and jacket ensure durability and flexibility, enabling the cable to withstand repeated flexing, moisture, and exposure to various elements without compromising performance. Manufactured in Sarasota, Florida, this UL-approved cable meets rigorous standards for marine and recreational vehicle applications, providing confidence in its safety and reliability.
