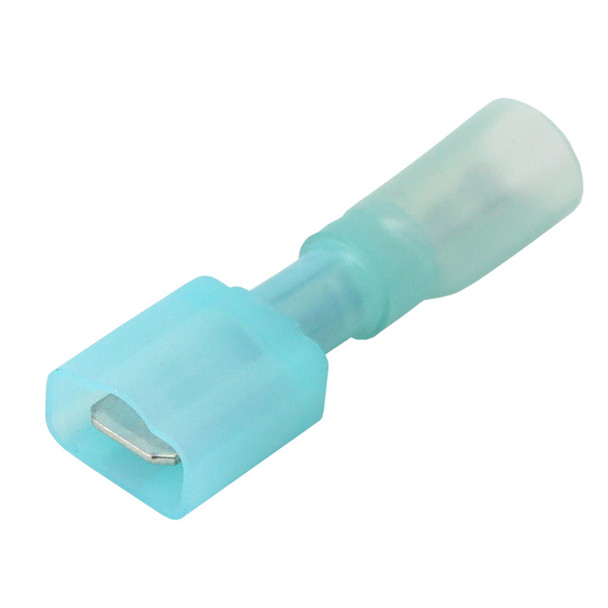

Pacer 16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue (25 Pack)

16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 25 Pack

Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.

This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion


• Added vibration protection in rugged environments


• Provides strain relief

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C


• Operating Temp: -55 C - 125 C


• Vol. Resistivity: 1015 Ohm-cm3


• Dielectric Strength: 900-V/mil


• Voltage Rating: 600-V

Specifications:

• AWG: 16-14


• Disc./Bullet Size: 0.250 in.


• Insulation Color: Blue


• Package Size: 25

Compliances:

• UL


• CSA


• RoHS

The Pacer TDE14-250FIM-25 is a high-quality, fully insulated male disconnect terminal designed for reliable and secure wire connections in demanding environments. Crafted for wires ranging from 16 to 14 AWG, this blue-insulated terminal provides a durable, moisture-resistant connection ideal for outdoor or harsh conditions. Its heat-shrink design incorporates a built-in heat-activated adhesive liner, ensuring an environmentally sealed connection that guards against water, condensation, salt spray, and corrosion. This robust feature makes it suitable for applications where exposure to moisture and corrosive elements is a concern, providing peace of mind and reducing maintenance needs.
Designed with rugged environments in mind, the Pacer male disconnect terminal offers added vibration protection and strain relief, helping to prevent disconnections or damage caused by physical stress. The terminal's shrink ratio of approximately 3:1 at 135°C allows for a tight, secure fit that enhances insulation integrity. Operating within a temperature range of -55°C to 125°C and rated for 600 volts, this terminal ensures safety and performance in a wide variety of electrical systems. The blue insulation color indicates suitability for wire gauges 16-14 AWG, and the package includes 25 terminals, making it a cost-effective choice for bulk applications.
Compliant with UL, CSA, and RoHS standards, the Pacer TDE14-250FIM-25 emphasizes safety, environmental responsibility, and high-quality manufacturing. Whether for maintenance, repair, or new installations, these fully insulated disconnect terminals facilitate quick, secure connections and disconnections, simplifying field servicing and equipment management. Trust Pacer's expertise and quality to ensure your electrical connections remain protected, reliable, and easy to work with in any environment.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief
