Description

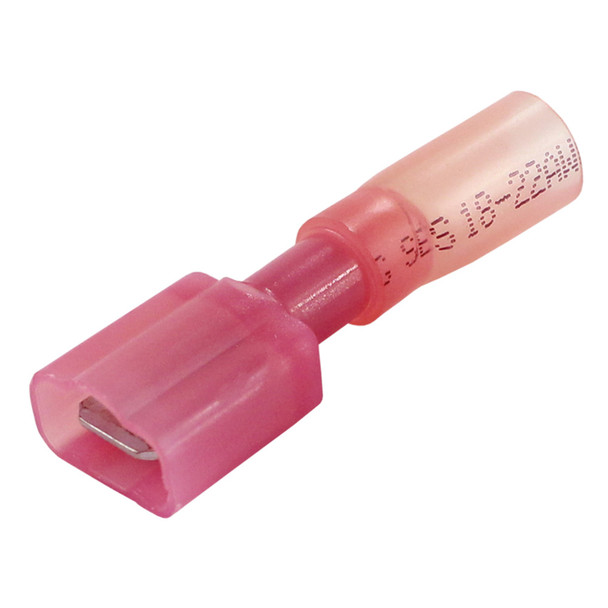

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 25 Pack
Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.
This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Protects terminations from water, condensation, salt spray, and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
Characteristics:
- Shrink Ratio: Approx. 3:1 at 135 C
- Operating Temp: -55 C - 125 C
- Vol. Resistivity: 1015 Ohm-cm3
- Dielectric Strength: 900-V/mil
- Voltage Rating: 600-V
Specifications:
- AWG: 22-18
- Disc./Bullet Size: 0.250 in.
- Insulation Color: Red
- Package Size: 25
Compliances:
- UL
- CSA
- RoHS
The Pacer TDE18-250FIM-25 is a premium set of heat-shrink fully insulated male disconnect terminals designed for reliable electrical connections in demanding environments. These terminals are ideal for applications requiring secure, moisture-resistant connections with easy disconnection capabilities. Constructed with a built-in heat-activated adhesive liner, they provide a rugged seal that protects against water, condensation, salt spray, oil, gas, and corrosion, ensuring long-term durability even in harsh conditions. The insulation color code indicates suitability for 22-18 AWG wire, making selection straightforward and reducing installation errors. The terminals offer excellent vibration protection and strain relief, helping to prevent damage caused by physical movement or mechanical stress. These features make them well-suited for automotive, industrial, and outdoor electrical systems where reliability and environmental resistance are critical. The terminals have a shrink ratio of approximately 3:1 at 135°C and support operating temperatures from -55°C to 125°C, providing flexibility for various operating environments. With a voltage rating of 600V and dielectric strength of 900V/mil, they meet industry standards for safety and performance. The package includes 25 terminals, each with a 0.250-inch diameter disconnect/bullet size, and conforms to UL, CSA, and RoHS certifications, ensuring compliance with major safety and environmental regulations. Whether for field maintenance or initial wiring, Pacer's heat-shrink insulated disconnect terminals deliver secure, protected, and easily removable connections tailored for demanding applications.
Features:
- Protects terminations from water, condensation, salt spray, and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
