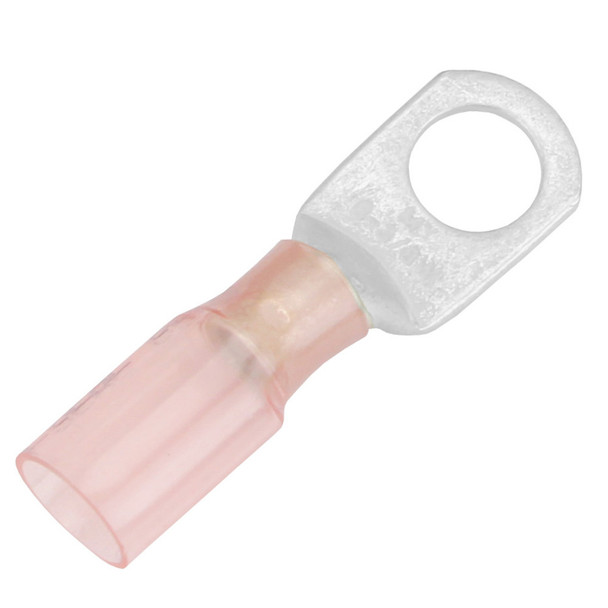

Pacer 8 AWG Heat Shrink Ring Terminal with 3/8 Inch Stud Size - 25 Pack

8 AWG Heat Shrink Ring Terminal - 3/8 Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion


• Added vibration protection in rugged environments


• Provides strain relief


• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion


• Conforms to automotive manufacturers specifications for wiring repairs


• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL


• CSA


• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C


• Operating Temp: -55 C - 125 C


• Vol. Resistivity: 1015 Ohm-cm3


• Dielectric Strength: 900-V/mil


• Voltage Rating: 600-V

Specifications:

• Stud Size: 3/8


• Terminal Pad Width: 0.59


• Package Size: 25

The Pacer TE8-38R-25 heat shrink ring terminal is designed for secure electrical connections with 8 AWG wires, featuring a 3/8 inch stud size for versatile installation. Constructed with a translucent, adhesive-lined polyolefin tubing, this terminal provides excellent moisture protection and environmental sealing, ensuring long-term durability in harsh conditions. The heat-activated adhesive liner creates a rugged, sealed connection that resists water, condensation, salt spray, and corrosion, making it ideal for automotive, marine, and industrial applications. Its robust design also offers added vibration protection and strain relief, which helps maintain reliable connectivity even in demanding environments.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief for secure connections

• Translucent, adhesive-lined polyolefin tubing acts as a durable insulator and moisture barrier

• Conforms to automotive manufacturer specifications for wiring repairs

• Color-coded tubing with wire gauge imprint for easy identification
