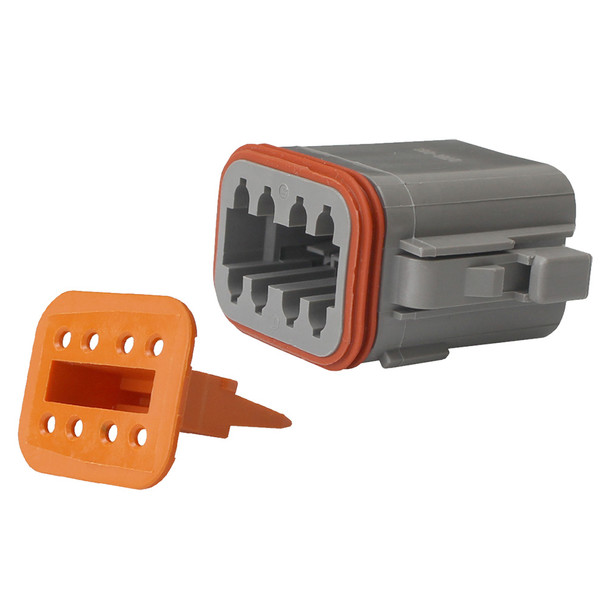

Pacer Deutsch DT Plug & Wedge Lock Kit - 8 Position, 5 Pack for Reliable Electrical Connections

Deutsch DT Plug Wedge Lock Kit - 8 Position - 5 Pack

Protecting electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect, and disconnect. Pacers DT Kits contain housing and wedge lock only. Pins and sockets to accompany these kits are sold separately. Contact a Pacer expert today with any questions that you have.

Features:

• Kits with cavities (6, 8, or 12) include housing (5 pieces) and wedge lock (5 pieces)

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Characteristics:

• Wedgelocks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Compliances:

• Ingress Protection (IP) Level: IP67


• EU RoHS/ELV


• Standard UL-94 Recognized

Specifications:

• Number of Cavities: 8


• Cavity Style: Plug (socket)


• Package Size: 5


• Housing: Rectangular Plug, Plastic reinforced with glass fiber


• Contact Size: 16 (13 Amp)


• Wire Size: 20-14 AWG


• Operating Temperature: -55C to 125C

The Pacer Deutsch DT Plug & Wedge Lock Kit is designed for secure, environmentally sealed electrical connections in a variety of demanding applications. Built with durability in mind, this 8-cavity kit provides a robust solution for wire-to-wire connections, ensuring protection against water, vibration, and shock. The kit includes five housings and wedge locks, making it ideal for field installations where quick and reliable connector assembly is essential.

Constructed with a reinforced plastic housing containing glass fiber, these connectors are rated for operation in temperatures ranging from -55°C to 125°C, accommodating diverse environmental conditions. The design features hand-insertable and removable contacts, allowing for easy installation and maintenance. Wedgelocks ensure precise contact alignment and retention, while redundant silicone seals provide ingress protection up to IP67, making these connectors suitable for exposed or harsh environments. These connectors are compliant with EU RoHS/ELV standards and are recognized under UL-94 for safety and flame retardancy.

Specifically designed for use with 20-14 AWG wires and contact sizes up to 13 amps, the Deutsch DT series connectors are versatile and field-proven. Their rectangular plug (socket) cavity style simplifies installation, and their rugged construction ensures long-lasting performance in demanding industrial, automotive, or outdoor settings. Additional pins and sockets are sold separately, providing flexibility for custom configurations. Whether for new installations or maintenance of existing systems, these kits deliver dependable, sealed electrical connections for a wide range of applications.

Features:

• Kits with cavities include housing and wedge lock for secure connections

• Environmental sealing with redundant silicone seals for IP67 protection

• Designed for wire-to-wire applications with easy plug and disconnect features

• Constructed with reinforced plastic housing for durability and temperature resistance

• Wedgelocks ensure proper contact alignment and retention
