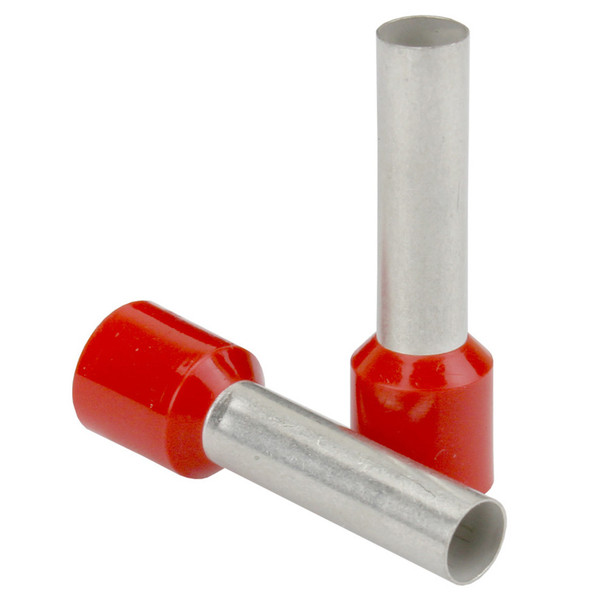

Pacer Red 16 AWG Wire Ferrules - 8mm Length, 25 Pack for Reliable Terminations

Red 16 AWG Wire Ferrule - 8mm Length - 25 Pack

Wire fraying can quickly become a problem when dealing with IEC (European)-style terminal blocks. As the wire frays, the connection becomes weaker, and the problem will need to be addressed. But all that can be prevented. How By utilizing wire ferrules. Wire ferrules are a type of terminal that prevents wire fraying. It covers the stranded wire and creates a solid, connected piece. In a sense, wire ferrules make stranded wire behave like solid wire. This is important, especially when working with IEC terminal blocks.

How are wire ferrules properly used The first step is to strip the wire to the correct length. Now slide the ferrule over the exposed wire. Make sure that the nylon casing butts up to the wire insulation. Once set, crimp using the proper tool. Using the proper tool is important, as, without the proper pressure, the wire may not create a solid connection. Proper crimping pressure and technique are key to ensuring continued performance. Once properly crimped, users can add heat shrink for added protection if they choose.

Features:

• Prevent strand separation while minimizing strand breakage


• Insulated ferrules provide additional electrical insulation


• Increase connection reliability when terminating stranded wire in terminal blocks

Specifications:

• Package Size: 25


• Wire Size (AWG): 16


• Insulation Color: Red


• Ferrule Length: 8mm (0.31 in.)


• Stripping Length: 10mm (0.39 in.)

The Pacer Red 16 AWG Wire Ferrules are designed to ensure secure and reliable electrical connections when working with stranded wires and IEC-style terminal blocks. These ferrules prevent wire fraying and strand separation, which can compromise connection integrity and lead to electrical issues. By using these ferrules, you can transform stranded wire into a solid, single piece that behaves like a solid wire, enhancing connection stability and lifespan. They are particularly useful in applications requiring consistent and durable terminations, such as control panels, automation systems, and electrical installations. Proper application involves stripping the wire to the specified length, sliding the ferrule over the exposed strands, ensuring the nylon casing contacts the wire insulation, followed by crimping with the appropriate tool. Correct crimping pressure is essential to achieve a solid connection, and additional protection can be added by applying heat shrink tubing if needed. The ferrules feature insulation for added electrical safety, making them ideal for ensuring compliant and secure wiring connections in various electrical projects. Each pack contains 25 red ferrules compatible with 16 AWG wire, measuring 8mm in length, with a stripping length of 10mm. Their compact design and reliable performance make them an essential component for electricians and technicians seeking to improve connection quality and safety in their wiring tasks.

Features:

• Prevent strand separation while minimizing strand breakage

• Insulated ferrules provide additional electrical insulation

• Increase connection reliability when terminating stranded wire in terminal blocks
