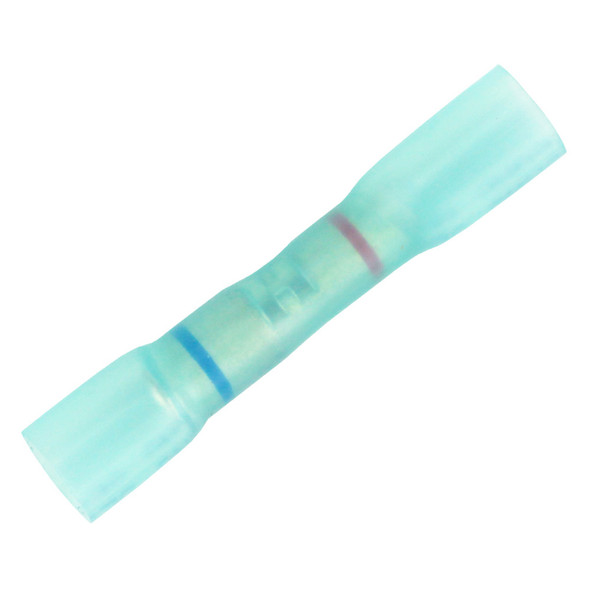

Pacer TBSDE14-18-500 Step-Down Butt Splices with Blue Heat Shrink for 22-18 AWG to 16-14 AWG Wire Connections, Pack of 500

Step-Down Butt Splices with Blue Heat Shrink - 22-18 AWG to 16-14 AWG - 500 Pack

In an electrical system, there may be times when connecting one wire to multiple wires is needed. Alternatively, there may be times when connecting two different gauge wires is needed. In situations like this, users would use step-down butt splices with colored heat shrink.

Heat-shrink butt splices protect against the elements in the most challenging of environments. They offer the best moisture protection available. These step-down heat-shrink butt splices have an adhesive liner. This liner provides a durable, rugged, environmentally sealed connection for wires between 18 AWG - and 14 AWG. It protects from physical abuse and abrasion, water, salt, and other corrosive compounds. Step-down butt splices join two wires to one. The colored dash on the tubing indicates the wire size for the connector, and this blue one indicates 16-14 AWG.

Step-down heat-shrink butt splices are used to connect different gauge wires. They are also used to connect multiple wires of the same size. So, users could connect a 10 AWG wire to a 12 AWG wire or connect a 12 AWG wire to two 12 AWG wires. The first step is to properly strip the wires to the correct length. If users look inside the butt splice, an indentation where the wires should butt up against can be seen. Also, be careful to make sure that the butt splice and the wire insulation are touching. If not, users run the risk of weakening the connection.

Next, the stripped wire is inserted into one side of the butt splice and crimped with the proper tool. This crimp bends the connector around the wire. This crimp creates a solid connection. On the other side, two wires are added. After crimping, perform the tug test to make sure the wires don't pull out. Once the wire has passed the test, apply heat to the heat shrink, working outward. Be careful not to burn the butt splice or the wire insulation. Now a durable, environmentally protected connection is created. Remember, butt splices are useful for their rapid installation and durability. Other methods of connection may not offer the same level of protection.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion


• Added vibration protection in rugged environments


• Provides strain relief

Compliances:

• UL


• CSA


• RoHS

Specifications:

• Shrink Ratio: Approx. 3:1 at 135 degrees C


• Operating Temperature: -55 degrees C - 125 degrees C


• Vol. Resistivity: 1015 Ohm-cm3


• Dielectric Strength: 900V/mil


• Voltage Rating: 600V


• Guage (AWG): 22-18 AWG to 16-14 AWG


• Max. Wire Insulation Outer Diameter: 0.21 in.


• Heat Shrink Color: Blue

*Sold as a pack of 500

The Pacer TBSDE14-18-500 step-down butt splices are designed to facilitate secure and reliable electrical connections between wires of different gauges or multiple wires of the same gauge. Engineered with durable blue heat shrink tubing, these splices offer exceptional protection against environmental elements such as moisture, corrosion, and physical abrasion, making them ideal for rugged outdoor or industrial applications. The built-in adhesive liner ensures a sealed connection that resists water, salt spray, and other corrosive compounds, extending the lifespan of your wiring system. These connectors are suitable for wires ranging from 22 to 18 AWG on one end and 16 to 14 AWG on the other, providing flexibility for various wiring configurations. Proper installation involves stripping the wires to the indicated length, inserting them into the splice, and crimping with the appropriate tool to establish a solid connection. After crimping, applying heat to the heat-shrink tubing ensures a snug fit that protects against environmental damage while providing strain relief and vibration resistance. These features streamline installation and enhance the durability of electrical systems in demanding environments, making the Pacer TBSDE14-18-500 an essential component for professional electrical work. Compliant with UL, CSA, and RoHS standards, this pack includes 500 splices for extensive wiring projects, offering a cost-effective and reliable solution for industrial, automotive, and marine applications.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion

• Added vibration protection in rugged environments

• Provides strain relief
