Pacer TDT04F-6RP Deutsch Receptacle Repair Kit for 14-18 AWG Wire, 6 Position

DT Deutsch Receptacle Repair Kit - 14-18 AWG (6 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 6


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Pins


• Operating Temperature: -55C to 125C

Contents:

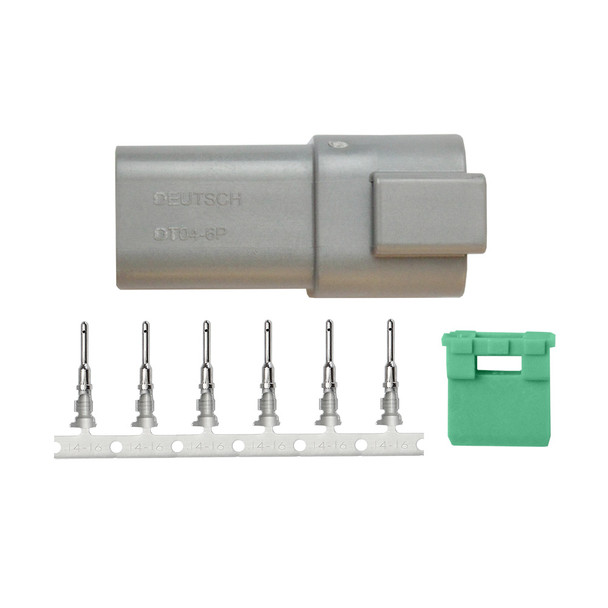

• (1) 6 pos. receptacle


• (1) 6 pos. wedge lock


• (8) pins


• (3) cavity plugs

The Pacer TDT04F-6RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding applications involving 14-18 AWG wires. This kit provides all necessary components to assemble a durable, field-ready connector that offers excellent environmental resistance and electrical performance. The rectangular plastic housing reinforced with glass fiber ensures structural integrity while supporting the rugged demands of industrial and automotive environments. The kit includes a 6-position receptacle, wedge lock, eight pins, and cavity plugs, facilitating secure and versatile connections in complex wiring systems.
Designed for ease of assembly, the contacts are hand-insertable and removable, allowing for efficient installation and maintenance. The inclusion of cavity plugs helps seal open circuits, enhancing protection against moisture and dirt. The use of wedge locks guarantees proper contact alignment and retention, ensuring optimal electrical contact and mechanical stability.
Compliance with IP68/IP6K9K ingress protection standards, RoHS/ELV directives, and UL-94 recognition makes this kit suitable for applications requiring high environmental standards. The robust design supports continuous operation across a temperature range from -55°C to 125°C, making it ideal for automotive, industrial, and outdoor electrical systems. This kit is tailored for wire-to-wire connections, providing a rugged and reliable solution for professionals seeking durability and ease of installation in their wiring projects.

Features:

• Includes all parts needed to assemble a 6-position connector

• Supplies one to two extra terminals for flexibility

• Cavity plugs included to seal open circuits

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals provide environmental protection

• Hand-insertable and removable contacts for easy installation

• Rectangular plastic housing reinforced with glass fiber

• Supports wire sizes from 14 to 18 AWG with a 13-amp capacity

• Designed for wire-to-wire applications in rugged environments

• Compliant with IP68/IP6K9K ingress protection, RoHS/ELV, and UL-94 standards
