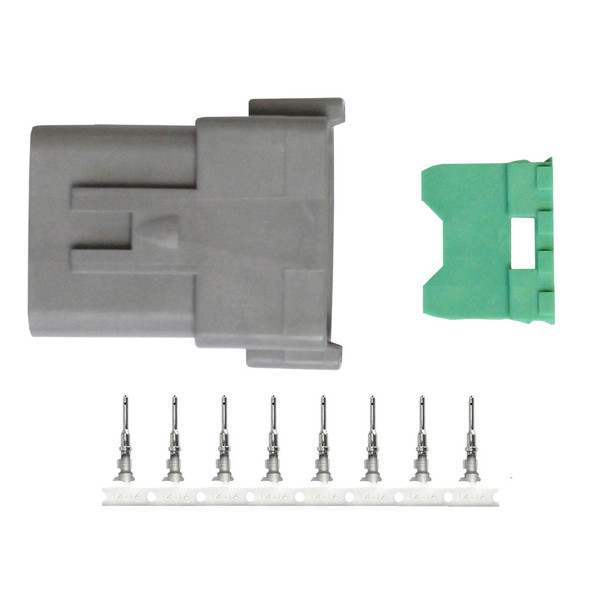

Pacer TDT04F-8RP Deutsch Receptacle Repair Kit for 14-18 AWG Wires, 8-Position

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Pins


• Operating Temperature: -55C to 125C

Contents:

• (1) 8 pos. receptacle


• (1) 8 pos. wedge lock


• (10) pins


• (4) cavity plugs

The Pacer TDT04F-8RP Deutsch Receptacle Repair Kit is designed for reliable wire-to-wire connections in demanding environments. This kit includes all necessary parts to assemble an 8-position rectangular receptacle, making it ideal for applications requiring secure and durable electrical connections. Crafted with a reinforced plastic housing featuring glass fiber, the connector ensures rugged durability and resistance to harsh conditions. It supports wire sizes from 14 to 18 AWG, with a continuous current capacity of 13 amps per contact, making it suitable for various automotive, industrial, and machinery applications. The kit contains the receptacle, wedge lock, ten pins, and cavity plugs, providing everything needed for quick and efficient installation or repair. Wedge locks guarantee proper contact alignment and secure retention, while silicone seals offer protection against ingress, achieving IP68 and IP6K9K ratings for water and dust resistance. These features ensure the connector performs reliably in environments exposed to moisture, dust, or extreme temperatures, which range from -55°C to 125°C. The contacts are hand-insertable and removable, facilitating maintenance and upgrades without specialized tools. Compliance with standards such as UL-94, RoHS, and ELV further affirms the safety and environmental friendliness of this product. Suitable for enclosed applications, the Pacer TDT04F-8RP delivers field-proven rugged performance, making it an essential solution for secure electrical connections across a broad spectrum of industries.

Features:

• Includes all parts needed for assembly, including extra terminals and cavity plugs

• Supports wire sizes from 14 to 18 AWG with a 13-amp continuous capacity

• Rugged plastic housing reinforced with glass fiber for durability

• Wedge locks ensure contact alignment and retention

• Silicone seals provide ingress protection up to IP68 and IP6K9K

• Contacts are hand-insertable and removable for easy maintenance

• Operating temperature range from -55°C to 125°C

• Compliance with UL-94, RoHS, and ELV standards for safety and environmental standards
