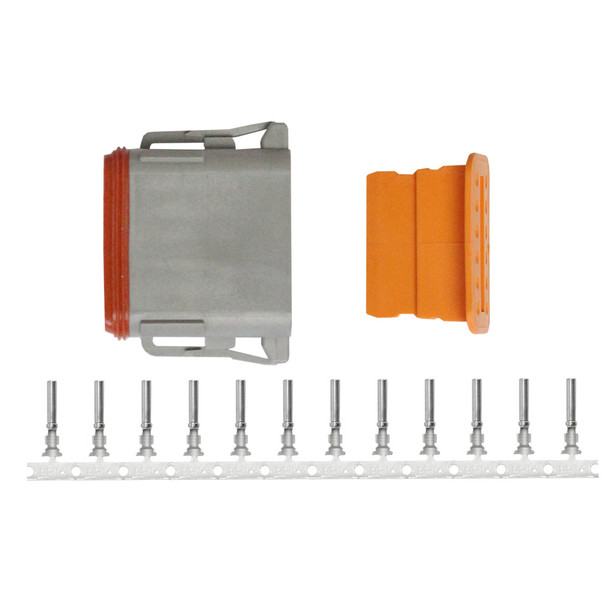

Pacer TDT06F-12RS Deutsch Plug Repair Kit for 14-18 AWG Wires, 12-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 12


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Sockets


• Operating Temperature: -55C to 125C

Contents:

• (1) 12 pos. plug


• (1) 12 pos. wedge lock


• (14) sockets


• (6) cavity plugs

The Pacer TDT06F-12RS Deutsch Plug Repair Kit is designed for reliable wire-to-wire connections in demanding electrical applications. This comprehensive kit includes all necessary parts to assemble a 12-position connector compatible with 14 AWG wires, featuring durable components suitable for rugged environments. The kit's sockets and housing are engineered to ensure secure contact retention and alignment, with wedge locks providing added stability during installation and operation. The inclusion of cavity plugs allows for sealing open circuits, enhancing the connector's environmental resistance and safety. With a robust, glass fiber reinforced plastic housing, the connector offers excellent durability and resistance to harsh conditions, including extreme temperatures ranging from -55°C to 125°C. The design adheres to industry standards, boasting ingress protection ratings of IP68 and IP6K9K, and complies with EU RoHS/ELV and UL-94 flame resistance standards. These features make the connector ideal for use in automotive, industrial, and off-road applications where field reliability and ruggedness are essential. The kit contains one 12-position plug, one wedge lock, 14 sockets, and six cavity plugs, providing everything necessary for a secure and waterproof connection. Whether replacing damaged connectors or building new wiring harnesses, this repair kit offers a dependable solution for professional electricians and electrical engineers seeking high-quality, easy-to-install components for complex wiring systems.

Features:

• Includes all parts needed to assemble a 12-position connector

• Supplies one to two extra terminals for flexibility

• Cavity plugs included to seal open circuits

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals enhance environmental resistance

• Hand-insertable and removable contacts for easy maintenance

• Housing made from reinforced plastic for durability

• Designed for 14 AWG wire applications with a 13-amp capacity

• Ingress protection rated at IP68 and IP6K9K

• Operates reliably across a temperature range from -55°C to 125°C

• Complies with EU RoHS/ELV and UL-94 flame standards
