Pacer TDT06F-2RS DT Deutsch Plug Repair Kit for 14-18 AWG Wires, 2-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (2 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 2


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Sockets


• Operating Temperature: -55C to 125C

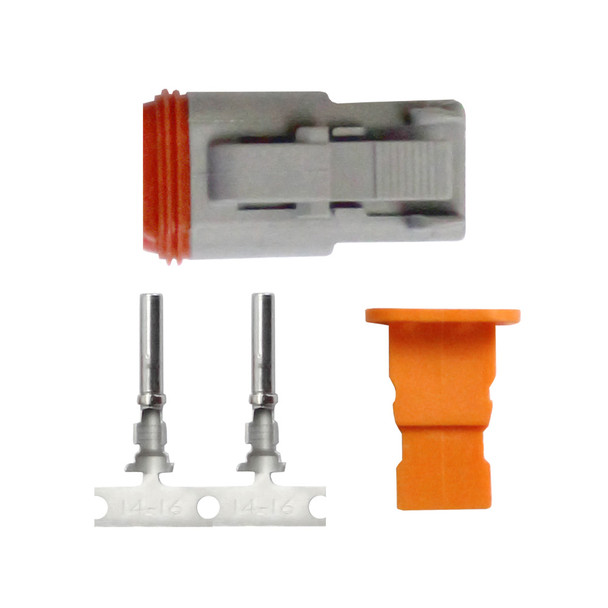

Contents:

• (1) 2 pos. plug


• (1) 2 pos. wedge lock


• (3) sockets

The Pacer TDT06F-2RS Deutsch Plug Repair Kit is designed for reliable wire-to-wire connections in demanding electrical applications. Compatible with 14 to 18 AWG wires, this kit features a two-position rectangular receptacle with reinforced plastic housing and glass fiber for durability in harsh environments. The kit includes all necessary components to repair or assemble Deutsch connectors, ensuring a secure and stable connection every time.

Built with high-quality materials, the Pacer TDT06F-2RS offers features such as wedge locks for proper contact alignment and retention, redundant silicone seals for ingress protection, and hand-insertable contacts for ease of use. The design supports a continuous operating temperature range from -55°C to 125°C, making it suitable for various industrial, automotive, or field applications. These connectors are UL-94 recognized, compliant with EU RoHS/ELV standards, and rated for ingress protection levels IP68 and IP6K9K, providing field-proven reliability and rugged quality.

This repair kit contains everything needed for assembly, including a 2-position plug, a wedge lock, and three sockets, with additional terminals and cavity plugs for sealing open circuits. Its compact size and robust construction make it an ideal choice for professionals seeking dependable electrical connections in tough conditions. Whether used in new installations or repairs, the Pacer TDT06F-2RS ensures a secure, high-performance connection for a wide range of wire-to-wire applications.

Features:

• Includes all parts needed to assemble a connector

• Contains one to two extra terminals for flexibility

• Cavity plugs included to seal open circuits

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals for ingress protection

• Hand-insertable and removable contacts for ease of installation

• Durable plastic housing reinforced with glass fiber

• Rated for continuous operation from -55°C to 125°C

• Compliance with IP68 and IP6K9K ingress protection standards

• UL-94 recognized flame-retardant material
