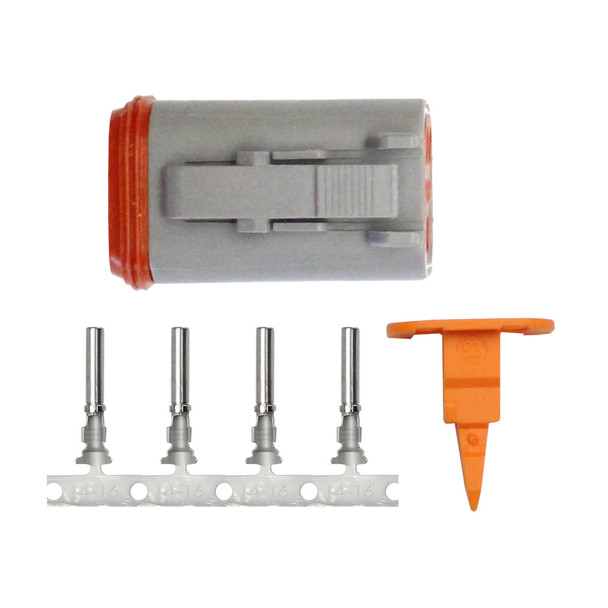

Pacer TDT06F-4RS DT Deutsch Plug Repair Kit for 14-18 AWG Wires, 4-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (4 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 4


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Sockets


• Operating Temperature: -55C to 125C

Contents:

• (1) 4 pos. plug


• (1) 4 pos. wedge lock


• (5) sockets


• (2) cavity plugs

The Pacer TDT06F-4RS DT Deutsch Plug Repair Kit is designed for reliable wire-to-wire connections in demanding electrical applications. This kit is compatible with 14 to 18 AWG wires and features a 4-position rectangular housing constructed from reinforced plastic with glass fiber, ensuring durability in harsh environments. Its design incorporates wedge locks that guarantee precise contact alignment and secure retention, along with redundant silicone seals to provide ingress protection up to IP68 and IP6K9K standards. The kit includes all necessary components to assemble a connector, such as five sockets, a 4-position plug, a wedge lock, and cavity plugs for sealing open circuits, making field assembly straightforward and efficient. These features enable robust performance in applications requiring rugged, sealed electrical connections, especially in automotive, industrial, and off-road environments. The contacts are hand-insertable and removable, facilitating maintenance and repair without specialized tools. Operating over a temperature range from -55°C to 125°C, this kit ensures dependable operation in extreme conditions. Compliant with EU RoHS/ELV standards and recognized under UL-94, it meets modern environmental and safety requirements. Whether used for wire-to-wire connections or in enclosed, field-proven assemblies, the Pacer TDT06F-4RS kit offers a versatile, durable solution for high-reliability electrical systems.

Features:

• Complete assembly kit with all necessary parts

• Includes one to two extra terminals for flexibility

• Cavity plugs for sealing open circuits

• Wedge locks for secure contact retention

• Redundant silicone seals for ingress protection

• Hand-insertable and removable contacts for easy maintenance

• Constructed with reinforced plastic housing for durability

• Designed for 14-18 AWG wire gauge applications

• Operates reliably over a wide temperature range
