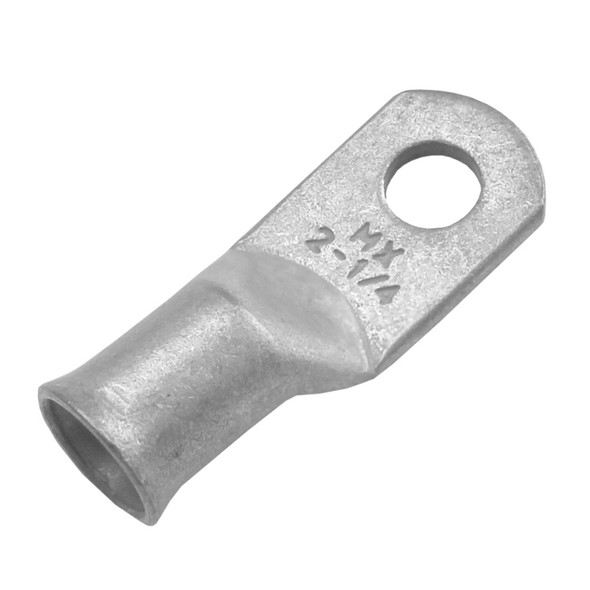

Pacer Tinned Lug 1/0 AWG - 1/4 inch Stud Size, 10 Pack for Reliable Marine and Electrical Connections

Tinned Lug 1/0 AWG - 1/4 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated


• No exposed seams


• Rated for 600V


• Made from seamless tubes of 99.9% copper for higher conductivity


• Designed for stranded copper wires


• Larger pad area for better contact


• Cable size and stud hole stamped on pad


• Can be crimped or soldered


• Highly controlled flare to allow easy cable insertion


• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110


• ASTM-B-152 copper rated at 100% conductivity


• UL CSA Approved


• RoHS Compliant


• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 1/0


• Stud Size: 1/4


• Length: 1.844


• Width: 0.734


• Clearance: 0.406


• Package Size: 10

Ensure durable and corrosion-resistant electrical connections with the Pacer Tinned Lug 1/0 AWG, featuring a 1/4 inch stud size, available in a convenient 10-pack. Constructed from seamless 99.9% copper tubes, these lugs provide high conductivity and reliable performance in demanding environments. The tin-plated finish offers enhanced corrosion resistance, making them ideal for marine applications and outdoor electrical systems. Their no-exposed-seam design prevents moisture ingress, ensuring long-lasting, waterproof connections. Designed for stranded copper wires, these lugs feature a larger contact pad for improved electrical contact and a highly controlled flare for easy cable insertion. The transition from barrel to pad is tightly engineered to maximize the usable length, facilitating secure crimping or soldering for a robust connection. The lugs are rated for 600 volts, meet UL and CSA standards, and are RoHS compliant, confirming their safety and environmental friendliness. The stamped cable size and stud hole on the lug provide quick identification, simplifying installation in complex wiring setups. Suitable for various wire sizes up to 1/0 AWG, they are perfect for high-current applications requiring secure, waterproof connections. Whether for marine, industrial, or automotive use, these lugs deliver performance, durability, and ease of installation, making them a versatile choice for professional electricians and DIY enthusiasts alike.

Features:

• Tin plated for corrosion resistance and durability

• No exposed seams to prevent moisture ingress

• Rated for 600 volts for high-voltage applications

• Made from seamless tubes of 99.9% copper for superior conductivity

• Designed specifically for stranded copper wires

• Larger pad area enhances contact quality

• Cable size and stud hole stamped on the lug for easy identification

• Compatible with crimping and soldering methods

• Highly controlled flare facilitates smooth cable insertion

• Tight barrel to pad transition for longer, more reliable barrel length
