Description

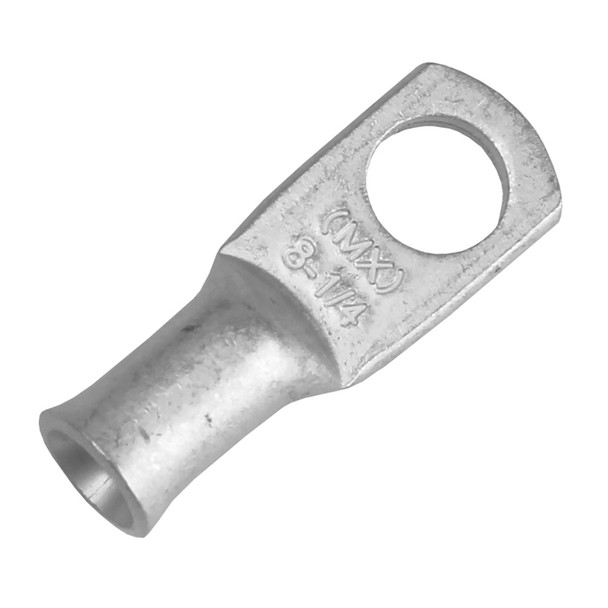

Tinned Lug 8 AWG - 1/4 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 J1811
Specifications:
- Wire AWG: 8
- Stud Size: 1/4
- Length: 1.187
- Width: 0.438
- Clearance: 0.344
- Package Size: 10
The Pacer Tinned Lug Part Number TAE8-14R-10 offers a durable and corrosion-resistant solution for secure electrical connections. Crafted from seamless tubes of 99.9% copper, these lugs provide high conductivity essential for efficient power transfer. The tin-plated finish ensures excellent corrosion resistance, making them particularly suitable for marine environments or applications exposed to moisture. With no exposed seams, these closed-end lugs prevent water ingress, enhancing connection longevity. When used with epoxy heat shrink tubing, they create waterproof seals that fully envelop the conductor, providing superior protection against environmental elements. These lugs are easy to install; simply strip the wire, slide the lug onto the conductor, and crimp or solder as needed for a secure terminal. The larger contact pad improves electrical contact, while the stamped cable size and stud hole ensure proper fitment. Designed for stranded copper wire, they support wire sizes up to 8 AWG and feature a 1/4 inch stud size for versatile applications. The tight transition between the barrel and pad offers a longer usable length, simplifying installation and ensuring reliable connections. Suitable for systems rated up to 600 volts, these lugs meet or exceed industry standards, including ASTM-B-152 for copper conductivity and UL/CSA approvals. Their RoHS compliance underscores environmentally responsible manufacturing. Whether used in marine, industrial, or automotive wiring, these Pacer lugs provide a dependable, corrosion-resistant connection that withstands harsh environments. Each pack contains 10 pieces, making them ideal for both repair and new installations, ensuring your electrical system remains secure and functional over time.
Features:
- Tin plated for corrosion resistance
- No exposed seams for waterproof integrity
- Rated for 600 volts applications
- Made from seamless 99.9% copper tubing for high conductivity
- Designed for stranded copper wires up to 8 AWG
- Larger pad area for improved contact
- Cable size and stud size stamped on each lug
- Can be crimped or soldered for secure connections
- Controlled flare facilitates easy cable insertion
- Tight barrel-to-pad transition for extended usable length
