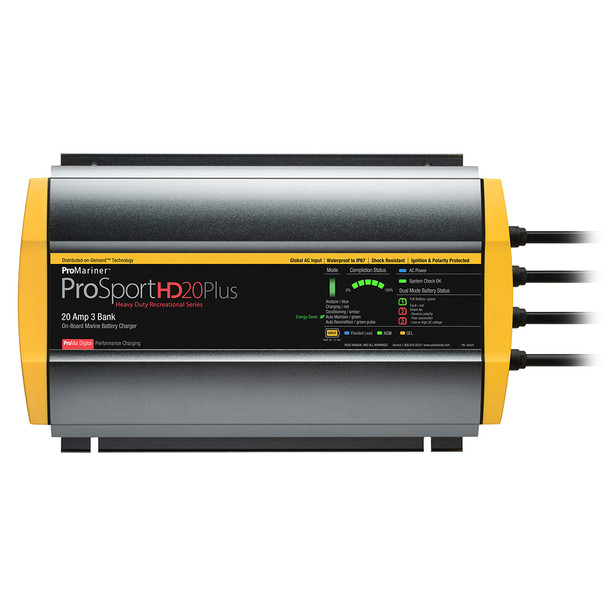

ProMariner ProSportHD 20 Plus Global Generation 4 20 Amp 3-Bank Battery Charger

ProSportHD 20 Plus Global Gen 4 - 20 Amp - 3-Bank Battery Charger

*C13 Adapter Plug Required*

ProSportHD Generation 4 boasts a tri-surface heatsink design. This heavy-duty lightweight design delivers significantly faster charging through optimal cooling, while delivering true rated amp output during charge mode.

ProSportHD's enhanced microprocessor and software provides digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and GEL batteries. HP AGM profile on ProSportHD 20 Dual only.

Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.

Designed for use in harsh environments with our industrial grade jacketed DC and AC power cables which include molded strain reliefs and wire splitters.

Features:

• ProMar Digital Technology Microprocessor and software controlled charging technology for fast, precise charging


• Distributed-On-Demand Technology 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed


• Heavy Duty Tri-Surface Extruded Heat Sink Design Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode


• Expanded LED Display with Completion Status Gauge LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status and Battery Type indication


• Lightweight Design Up to 40% lighter compared to an epoxy filled charger


• Auto-Maintain Energy Saver Mode Monitor and auto maintain batteries only when needed to maintain full state of charge. This significantly reduces AC power consumption


• Fully Automatic 5-Stage Digital Performance Charging 5 Stages: Analyzes, charges, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life


• Built-in Quality and Safety Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B


• Easy Installation and Operation Pre-wired with 6 AC and DC cables


• Battery Type: Group 2431 Flooded, AGM, HP AGM and GEL batteries


• 3 Year Warranty

Specifications:

• DC Voltage Systems: 12/24/36v


• Amps: 20


• No. of Batteries: 3


• AC DC Cable Length: 6'/6'/6'


• Size: 7.9" x 13.6" x 2.9"


• Weight: 8.8 lbs


• AC In: 100-240v AC 50/60Hz


• AC Plug: IEC C14

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The ProMariner ProSportHD 20 Plus Global Generation 4 is a high-performance, multi-bank battery charger designed for demanding marine and industrial applications. Featuring a tri-surface heatsink design, this charger delivers optimal cooling and maintains true rated current output during operation, ensuring reliable and efficient charging. Its lightweight construction, up to 40% lighter than epoxy-filled alternatives, makes installation and handling easier without compromising durability. The integrated digital microprocessor and software control enable fast, precise charging with advanced features such as a fuel gauge style charge completion monitor, individual fault indicators, and three selectable performance profiles for Flooded, AGM, and GEL batteries, including an HP AGM profile exclusive to the dual-bank model. Fully automatic 5-stage charging extends battery life by analyzing, conditioning, and reconditioning batteries during storage, reducing maintenance efforts and ensuring batteries remain at optimal performance levels.

Features:

• ProMariner Digital Technology microprocessor for fast, accurate charge control

• Distributed-On-Demand technology ensures maximum utilization of available charging amps across multiple batteries

• Heavy-duty tri-surface extruded heat sink design for superior cooling and consistent current delivery

• Expanded LED display offers real-time status, completion gauge, multi-stage mode indicators, and battery type identification

• Lightweight design reduces weight by up to 40%, facilitating easier installation and handling

• Auto-Maintain Energy Saver Mode activates only when necessary, conserving power during storage

• Fully automatic 5-stage digital charging system enhances battery longevity and performance

• Built-in safety features include waterproof fuses, reverse polarity, temperature, current, voltage protections, and ignition safeguarding

• Pre-wired with 6 ft AC and DC cables for straightforward installation

• Compatible with Group 2431 Flooded, AGM, HP AGM, and GEL batteries

• Certified to Marine UL 1236, CEC, and DOE standards; FCC Class B compliant

• Backed by a 3-year warranty for peace of mind
