RAM Mount No Drill Vehicle System for 2004-2010 Ford F-150 and Lincoln Mark LT

Vehicle Base Ford F-150 (2004-2010)
Ford F-150 (2004-2010)
Lincoln Mark LT (2005-2010)

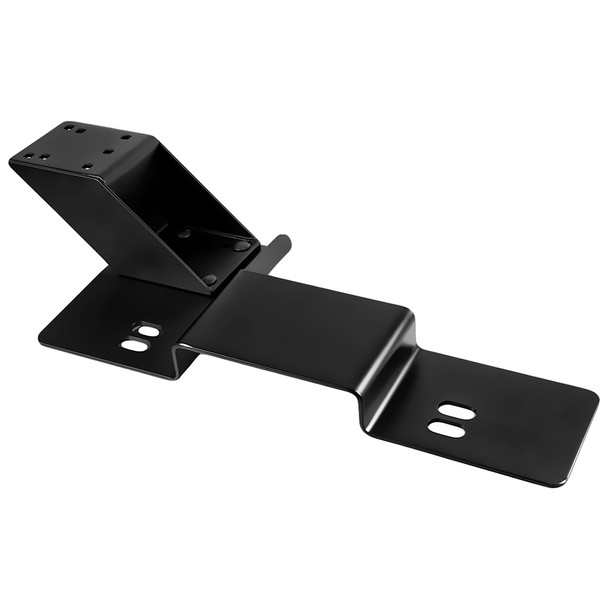

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation.

Placement of Mount:
Passenger side floor board, under seat

Drilling Requirements:
No - uses existing seat bolts

Seat Configuration:
Bucket/bench

Pole:
Purchased Separately

Weight:
9.1 lbs.

Material:
Powder Coated Steel

Features:
Quick installation with no drilling needed. Rock solid construction with a lifetime warranty.

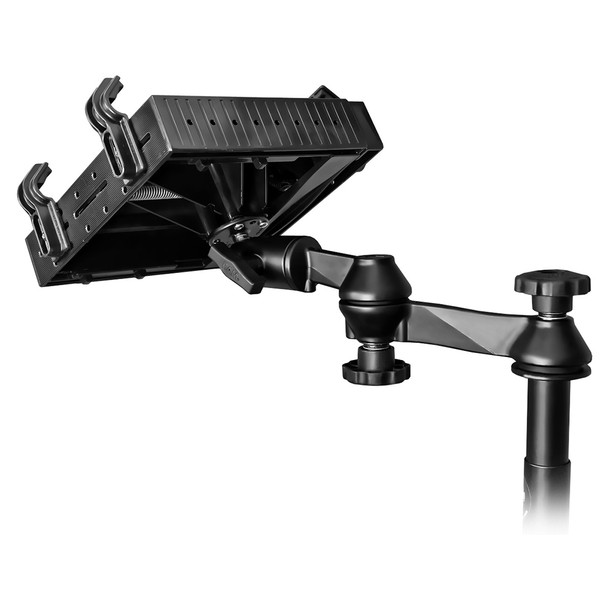

The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics.

Tough-Tray Dimensions:
Tray Depth: 10.0"
Tray Thickness: 2.125"
Tray Width (Expansion): 10" to 16"
Side Clamp Arm Height: 0.5" (min) to 1.75" (max)

Material:
High Strength Composite


The RAM RAM-VP-SW1-89, combination swing arm/tele-pole system, will connect to any RAM vehicle base without a welded female tele-pole. Included is a tele-pole with a height range from 11.5" to 17"; it can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the tele-pole becomes a rigid support for any RAM cradle, holder or Tough-Tray.

The double swing arm with rotating plate, allows you to twist and tilt the viewing angle of your laptop, tablet, UMPC, monitor, or any other connected electronic device, when mounted on your RAM Vehicle Mount. Taking the highly successful RAM Vehicle Mounts to the next level, this rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 12".

Material:
Powder Coated Marine Grade Aluminum

The RAM Mount No Drill Vehicle System (Part Number: RAM-VB-109-SW1) is designed for quick and secure installation in Ford F-150 models from 2004 to 2010, as well as Lincoln Mark LT trucks from 2005 to 2010. This system utilizes the existing passenger side seat rails, eliminating the need for drilling or permanent modifications. The installation process is straightforward, involving only the use of factory seat bolts, and it provides a stable foundation for mounting various electronic devices. Crafted from powder-coated steel, the system offers durability and resistance to wear, backed by a lifetime warranty. Its telescoping pole adjusts from 12 to 18 inches, allowing optimal positioning for driver or passenger access. Dual swing arms with a 12-inch reach provide articulation and flexibility, enabling users to position mounted devices precisely. The patented rubber ball and socket joint adds further adjustment capabilities while isolating shock and vibration for stable operation. The placement under the seat on the passenger side floorboard ensures a discreet setup that doesn't interfere with vehicle operation.

Features:

• Quick installation with no drilling required, utilizing existing seat bolts for a secure fit.

• Heavy-duty powder-coated steel construction for durability and long-term reliability.

• Adjustable telescoping pole from 12 to 18 inches for customizable height positioning.

• Dual swing arms with 12-inch reach for flexible articulation and device access.

• Patented rubber ball and socket joint for additional adjustment and vibration isolation.
