RAM Mounting Systems No-Drill Laptop Mount for Dodge Ram 1500 1994-2001 and More

RAM No-Drill Laptop Mount for 94-01 Dodge Ram 1500 More

This No-Drill Laptop Stand System installs quickly and easily into the specified vehicles using the existing passenger side seat rails hardware. This configuration provides a telescoping feature with upper and lower poles that allow users to set the mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. The patented rubber ball and socket joint provide additional adjustment as well as shock and vibration isolation.

The RAM Tough-Tray is spring-loaded to accommodate 10 to 16 wide laptops (17 wide screens). The tray features four adjustable retaining arms with a rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on the perimeter of the tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Specifications:

• Hardware Included: Assembly hardware


• Tray Dimensions Width Range: 10 - 16; Side Arm Clamp Height: 0.5 - 1.75; Tray Depth: 10; Tray Thickness: 2.125


• Hole Pattern: Seat Bolt Distance: 24.25 center to center (front right driver bolt, front left passenger bolt)


• Ball Size: C Size (1.5)


• Materials: Powder-coated steel; Marine grade aluminum; High-strength composite


• Weight: 23.2 lb.

Components:

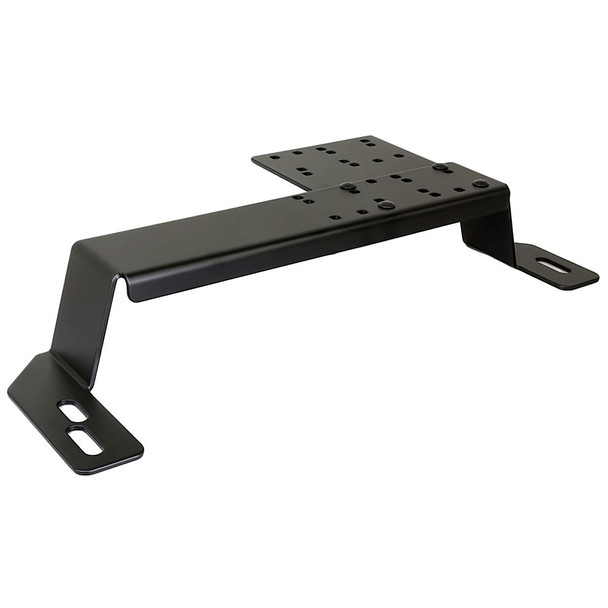

• RAM No-Drill Vehicle Base for the 94-01 Dodge Ram 1500 + More (RAM-VB-127)


• RAM Tele-Pole with 8 9 Poles, Double Swing Arms Round Plate (RAM-VP-SW1-89)

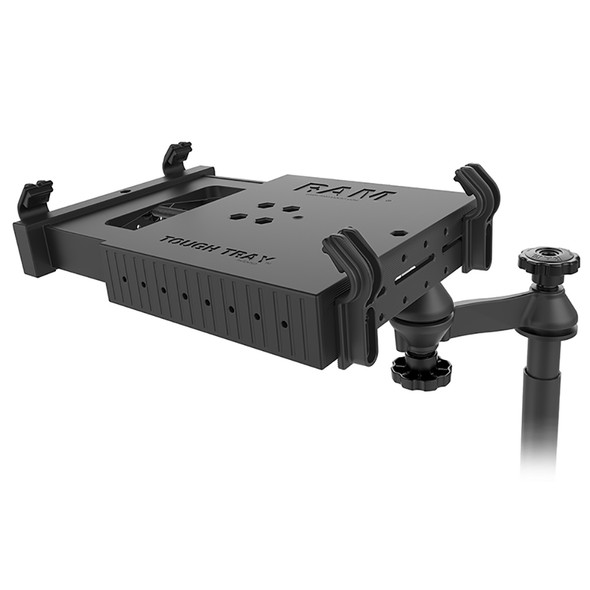

• RAM Tough-Tray Spring Loaded Laptop Tray (RAM-234-3)

Compatible Vehicles:

• Dodge: Ram 1500 (1994-2001), Ram 2500/3500 (1994-2002), Ram 2500/3500 Chassis Cab (1994-2002)

The RAM Mount RAM No-Drill Laptop Mount for the 1994-2001 Dodge Ram 1500 offers a quick and secure solution for integrating a laptop into your vehicle without drilling. Designed to fit multiple Ram models including 2500 and 3500 series, this system utilizes existing passenger seat rail hardware for effortless installation. The telescoping poles allow users to adjust the height with a simple twist of a knob, ensuring optimal positioning for driver or passenger access. Dual swing arms provide articulation and extend up to 12 inches, giving flexibility to reach and view the mounted device comfortably. The patented rubber ball and socket joint enhances adjustment options while isolating shock and vibration for stable operation.

Features:

• Easy No-Drill Installation: Installs quickly using existing seat rail hardware without modifications

• Adjustable Telescoping Poles: Allows height adjustments for personalized viewing angles with a simple turn of a knob

• Articulating Swing Arms: Extend up to 12 inches with dual swing arms for increased reach and flexibility

• Shock and Vibration Isolation: Rubber ball and socket joint provides additional adjustment and stability

• RAM Tough-Tray Compatibility: Spring-loaded tray accommodates laptops 10 to 16 inches wide with adjustable retaining arms

• Custom Fit and Port Access: Arms can be moved both vertically and horizontally to prevent blocking ports or drives

• Additional Accessories Support: Hole patterns enable mounting of GPS or other electronics
