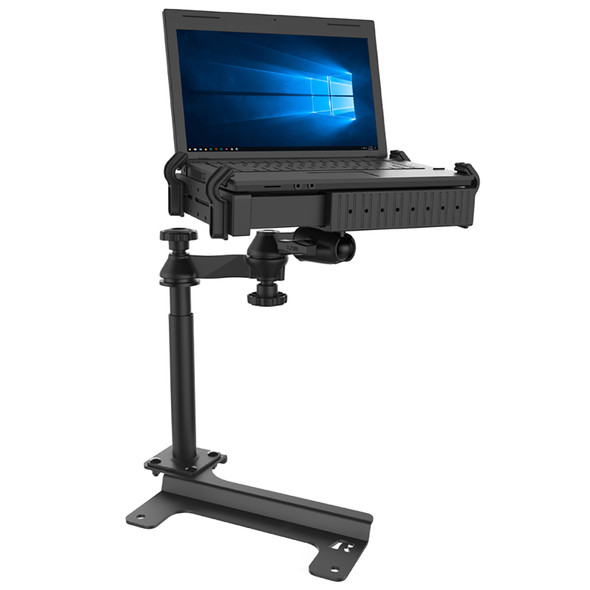

RAM Mounting Systems No-Drill Universal Laptop Mount - RAM-VB-196-SW1

No-Drill Universal Laptop Mount

The RAM Universal No-Drill Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle.

The included RAM Tough-Tray is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.

Features:

• Custom, No-Drill mounting base offers lowest profile in the industry


• Patented ball and socket mounting system offers shock and vibration dampening


• Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry


• Combination Telescoping pole adjusts both height and swing with one knob


• Modular system makes changing your vehicle, or your device, simple and cost effective


• Ability to mount laptops, tablets and other devices using the same mounting system


• Universal Laptop Tray accommodates most laptops

Specifications:

• Placement of Mount: Passenger side floor board, in front of seat


• Drilling Requirements: No - attaches to seat studs


• Seat Configuration: Bucket


• Material: High Strength Composite and Powder Coated Steel

PRODUCT DIMENSIONS:

• Height Range: 18.25" - 24"

TRAY DIMENSIONS

• Width Range: 10" - 16"


• Side Arm Clamp Height: .5" - 1.75"


• Tray Depth: 10"


• Tray Thickness: 2.125"

HOLE PATTERN

• Seat Bolt Distance: 9"-18.875" center to center

BALL/SOCKET SIZE

•
  C Size (1.5")

The RAM Mounting Systems No-Drill Universal Laptop Mount (Part Number: RAM-VB-196-SW1) provides a secure and flexible solution for mounting laptops in a variety of vehicles without the need for drilling. Designed with a heavy-duty steel mounting base, it attaches to existing seat bolts on the passenger side floorboard, ensuring a low-profile installation that maintains vehicle aesthetics. This versatile system is compatible with bucket seat configurations and is suitable for various vehicle types, making it an ideal choice for professionals on the go.

The included RAM Tough-Tray is spring-loaded to accommodate laptops ranging from 10 to 17 inches, with four adjustable retaining arms featuring rubber grips for a snug fit. These arms can be moved both vertically and horizontally, allowing for a customized fit that provides easy access to ports and drives. The tray's perimeter hole pattern allows for the addition of RAM accessories such as phone mounts or other electronics, enhancing your setup's functionality. The tray's design also supports optional accessories like a screen support and USB light, further increasing usability.

Constructed with high-strength composite and powder-coated steel, this mounting system ensures durability and long-lasting performance. The dual articulating swing arm and a telescoping pole allow for effortless height and swing adjustments with a single knob, providing optimal positioning for your workspace. The patented ball and socket mounting system offers shock and vibration dampening, protecting your equipment during vehicle movement. The modular design simplifies transitioning between vehicles or devices, making it a cost-effective and adaptable solution for mobile professionals.

Measuring approximately 18.25 to 24 inches in height and supporting trays between 10 to 16 inches wide, this mount system offers flexible configuration options. The seat bolt distance can be adjusted from 9 to nearly 19 inches to fit different vehicle seat layouts, ensuring a secure fit. The C-size (1.5-inch) ball and socket connection provides reliable stability while allowing for easy adjustments. Overall, the RAM Mount No-Drill Universal Laptop Mount delivers a professional-grade, customizable, and space-efficient solution for securing laptops in vehicles without permanent modifications.

Features:

• Custom, no-drill mounting base offers a low-profile installation

• Patented ball and socket system provides shock and vibration dampening

• Dual articulating swing arm for easy and precise adjustments

• Combination telescoping pole adjusts height and swing with one knob

• Modular system allows easy switching between vehicles and devices

• Universal laptop tray accommodates most laptops from 10" to 17"

• High-strength composite and powder-coated steel for durability

• Perimeter hole pattern supports additional RAM accessories

• Supports optional screen support and USB lighting accessories
