RAM Mounting Systems RAM-B-101-235U Double U-Bolt Rail Mount for Small Rails

RAM Double U-Bolt Rail Mount for Smaller Rails

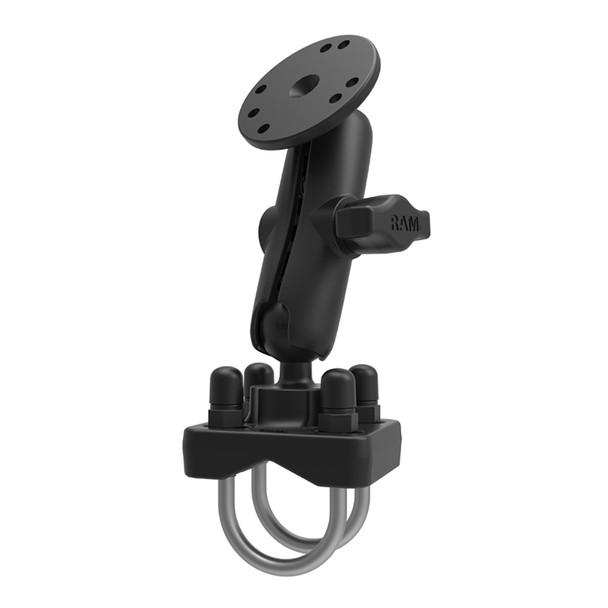

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Hardware Included:

• (2) 1/4"-20 U-Bolts for 1" - 1.25" Rails


• (4) 1/4"-20 Nylock Nuts


• (4) Rubber Caps

Features:

• CLAMP RANGE: 1" - 1.25" diameter


• SOCKET-TO-SOCKET LENGTH: 3"


• HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter


• BALL/SOCKET SIZE: B Size (1")


• WEIGHT CAPACITY: 2 lbs


• MATERIAL: Marine-grade aluminum

The RAM Mounting Systems RAM-B-101-235U Double U-Bolt Rail Mount offers a versatile solution for attaching devices to pipes and rails ranging from 1 to 1.25 inches in diameter. Crafted from marine-grade aluminum, this mount provides durability and corrosion resistance suitable for marine, outdoor, and vehicle applications. The mount features a 2.5-inch diameter round base with a universal AMPS hole pattern, ensuring compatibility with a variety of accessories. The stainless steel double U-bolt base allows secure attachment to smaller rails, making it ideal for boats, trailers, and other equipment requiring sturdy mounting points. The design incorporates a 1-inch diameter patented rubber ball and socket system that enables almost infinite adjustment, allowing users to find the perfect viewing angle for their device or accessory. This flexibility ensures optimal positioning and ease of use in various operating conditions. The mount includes essential hardware such as two 1/4-20 U-bolts, four nylock nuts, and rubber caps for secure installation and protection against environmental factors. Its compact socket-to-socket length of 3 inches makes it suitable for tight spaces, while the overall weight capacity of 2 pounds ensures reliable support for most small devices and accessories. Whether you need a reliable mounting point for GPS units, cameras, or other devices on small-diameter rails, the RAM-B-101-235U provides a robust, adjustable, and corrosion-resistant solution that adapts to your needs. Designed for ease of installation and long-term durability, this mount is an excellent choice for mobile and outdoor applications that demand secure, flexible attachment points.

Features:

• Clamp range: 1" - 1.25" diameter

• Socket-to-socket length: 3"

• Hole pattern: 4-hole AMPS pattern (1.181" x 1.496") and 3-hole 120-degree pattern (1.812" diameter)

• Ball/socket size: B Size (1")

• Weight capacity: 2 lbs

• Material: Marine-grade aluminum
