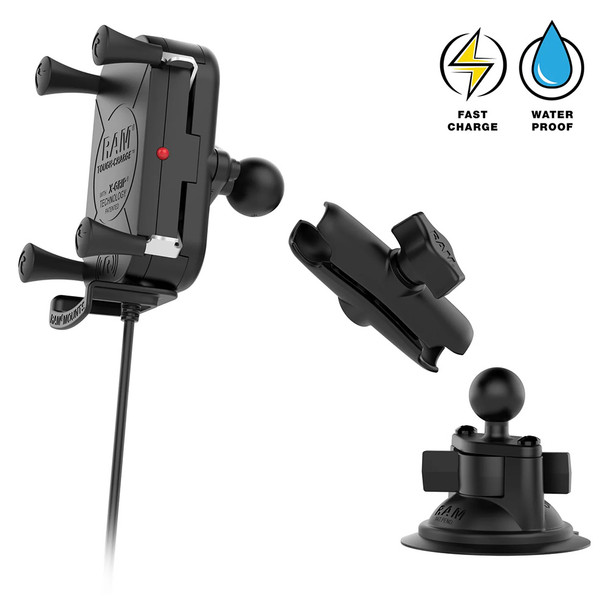

RAM Mounting Systems RAM-B-166-UN12W-1 Tough-Charge 15W Wireless Charging Suction Cup Mount

RAM Tough-Charge 15W Wireless Charging Suction Cup Mount

The RAM Tough-Charge with X-Grip Technology is the world's first patented, universal, waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi-compatible wireless phone charging.

All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position its placed in. For added security and peace of mind, a device tether is included thats recommended for outdoor applications.

In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM Tough-Charge with X-Grip Technology wireless charging suction cup kit includes a B-size diamond base featuring a 1" rubber ball, a medium-length double socket arm, and a RAM Twist-Lock suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Features:

• Waterproof Qi-compatible wireless phone charging cradle features spring-loaded RAM X-Grip technology and 15W maximum output


• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments


• RAM mounts are backed by a lifetime warranty, and RAM electronics are backed by a 1-year warranty with proof of purchase required.

Hardware Included:

• (1) Safety Tether


• (1) Glue Tube for Rubber Caps


• (1) Cradle Leg


• (1) Cradle Leg Cover


• (1) Silicon sleeve for USB waterproof connection


• (1) 1.2 Meter USB Extension Cable


• (4) Small zip ties


• (2) Large zip ties

Specifications:

• Holder Dimensions Width Range (inch): 2.375" - 3.25"


• Holder Dimensions Depth Range (inch): .875" max


• Suction Size (inch): 3.3" Diameter


• Socket-to-Socket-Length (inch): 3"


• Ball Size (inch): B Size (1")


• Weight Capacity (Standard Use): 2 lbs


• Weight Capacity (Heavy-Duty Use): 1 lb


• Materials: Marine-grade aluminum, high-strength composite, stainless steel


• Weight: 1.58 lb.


• Maximum Case Thickness: 6mm

Power Specifications:

• Input Power: 5V-2A; 9V-1.67A


• Output: 15W


• Conversion Efficiency: 85% Max


• Working Frequency: 110-205KHZ


• Product Standard: WPC v.1.2.4


• Compatibility: Compatible with QC2.0/QC3.0 power supplies Qi Compatible


• Input Connector: USB Type-A Male


• Input Cable Length: 20 in. with optional 1.2M extension cable


• Operating Temperature: 0C to +37.7C


• Compliance: Over-current protection, short circuit protection, and over-temperature protection

The RAM Mount RAM-B-166-UN12W-1 Tough-Charge 15W Wireless Charging Suction Cup Mount offers a versatile and durable solution for securing and charging your smartphone in demanding environments. Crafted with marine-grade aluminum, stainless steel components, and high-strength composite materials, this mount is designed to withstand harsh conditions while providing reliable power and stability. Its waterproof Qi-compatible cradle incorporates spring-loaded RAM X-Grip technology, which expands and contracts to securely hold nearly any phone, ensuring a snug fit without obstructing access to buttons and switches. The open design allows for easy device insertion and removal while maintaining accessibility to your device's features.

The mount features a 3.3-inch diameter suction cup for a strong hold on smooth surfaces, making it ideal for vehicle dashboards, boats, or outdoor applications. The cradle's adjustable support leg provides customizable positioning or can be removed to suit specific setups. The wireless charging cradle delivers up to 15W of power, supporting fast charging for Qi-compatible devices, with an inline switch to enable or disable charging as needed. The included Type-A male pigtail and 1.2-meter extension cable facilitate in-vehicle charging, offering flexibility for various installation needs. Additional accessories such as a safety tether, waterproof USB connection sleeve, and zip ties ensure a secure and weatherproof setup.

Designed for ease of use and durability, this mount supports phones with case thickness up to 6mm and weighs just 1.58 pounds. It is compatible with QC2.0 and QC3.0 power supplies, ensuring broad device compatibility. The mount's power system features an 85% maximum efficiency, with protections against over-current, short circuit, and over-temperature conditions, guaranteeing safety and longevity during operation. Suitable for a wide range of applications, the RAM Tough-Charge mount ensures your device remains charged, accessible, and securely mounted whether on the road, water, or outdoor environments.

Features:

• Waterproof Qi-compatible wireless charging cradle with spring-loaded RAM X-Grip technology and 15W maximum output

• Constructed with marine-grade aluminum, stainless steel components, and high-strength composite for durability in demanding environments

• Secure suction cup base with 3.3-inch diameter for reliable adhesion to smooth surfaces

• Adjustable support leg for customized positioning or removal based on user preference

• Includes a waterproof USB connection sleeve, safety tether, and extension cable for versatile installation
