Description

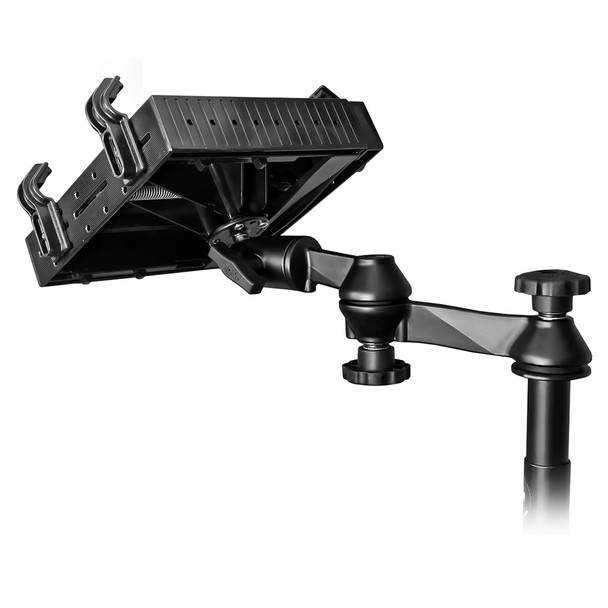

RAM Vertical Drill-Down Laptop Mount
The RAM Tough-Trayis spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics. The Tough-Trayis compatible with laptops that have 17" screens.
Universal Multi-Function Vehicle Base:
Truck fleets world wide will appreciate the well crafted universal multi-function vehicle base now offered by RAM. Considering the wide variety of seating arrangements in the commercial vehicle market, this new vehicle base is reversible by design. Now installers dont have to choose between locating a flat surface or round tubing to attach to under the vehicle seat. RAM has you covered with either configuration. Tubing framed seats can be attached to in minutes using the supplied u-bolts. Once in place and safely secured, several hole patterns are available allowing the freedom to choose how best to create your custom mounting solution. Steel box frame seats need only four discrete holes drilled to secure the base. Using hardware chosen and supplied by the installer, secure the base where its most convenient. Using the supplied u-bolt hardware, attach any number of RAM pedestal mounts to create a mounting system unmatched in its versatility and stability. There simply is no substitute for RAM vehicle products.
U-Bolt Dimensions:
- Accommodates rails from 0.625" to 1.5" in diameter.
Included Hole Patterns: - 100 x 100MM, 75 x 75MM, 50 x 100MM AMPS, RAM Three holes at 120 degrees
Material: - High Strength Composite and Powder Coated Marine Grade Aluminum
The RAM-VB-184T-SW1 Vertical Drill-Down Laptop Mount from RAM Mounting Systems offers a versatile and secure solution for vehicle-mounted computing needs. This mount features the RAM Tough-Tray, a spring-loaded expandable tray designed to accommodate laptops ranging from 10 to 16 inches wide, with compatibility for 17-inch screens. The tray includes four side clamping arms with rubber grips that can be adjusted both vertically and horizontally, ensuring a custom fit that does not obstruct ports or drives. The perimeter of the tray has hole patterns that facilitate additional RAM system attachments for GPS units, PDAs, or other electronic accessories, making it a comprehensive solution for mobile professionals who require reliable equipment mounting in their vehicles. This adaptability makes the RAM-VB-184T-SW1 ideal for various vehicle configurations, providing a stable platform for laptops in demanding environments.
The universal multi-function vehicle base is designed to fit a wide range of commercial vehicle seat configurations, making installation straightforward and flexible. Reversible by design, it allows installers to choose between flat surfaces or round tubing, accommodating both tube-framed and steel box frame seats. The base is secured with supplied u-bolts that attach quickly, with several hole patterns to ensure a custom and secure fit. Once mounted, the base supports multiple RAM pedestal mounts, enabling users to create a personalized and stable mounting system that can support a variety of electronic devices. Constructed from high-strength composite and powder-coated marine-grade aluminum, the base is built to withstand the rigors of mobile environments and harsh conditions.
The U-bolt dimensions are suitable for rails from 0.625 inches to 1.5 inches in diameter, providing universal compatibility. The included hole patterns—100 x 100mm, 75 x 75mm, 50 x 100mm, and three-hole configurations at 120 degrees—offer additional flexibility in mounting options. This product is engineered to deliver durability, stability, and ease of installation, making it an excellent choice for fleet operators, contractors, and mobile workers seeking a reliable vehicle mount system for laptops and electronic devices. Whether for work trucks, service vehicles, or mobile command centers, this RAM mount system ensures your equipment stays secure and accessible during transit.
Features:
- Spring-loaded expandable RAM Tough-Tray fits 10 to 16-inch wide laptops with compatibility for 17-inch screens
- Adjustable side clamping arms with rubber grips for a custom fit that avoids blocking ports or drives
- Perimeter hole patterns for additional RAM system attachments such as GPS or PDA devices
- Reversible universal vehicle base designed to fit both tube-framed and steel box frame seats
- Quick installation with supplied u-bolts and multiple hole pattern options for a secure fit
- Constructed from high-strength composite and marine-grade aluminum for durability and corrosion resistance
- U-bolt accommodates rails from 0.625 to 1.5 inches in diameter, ensuring versatile compatibility
