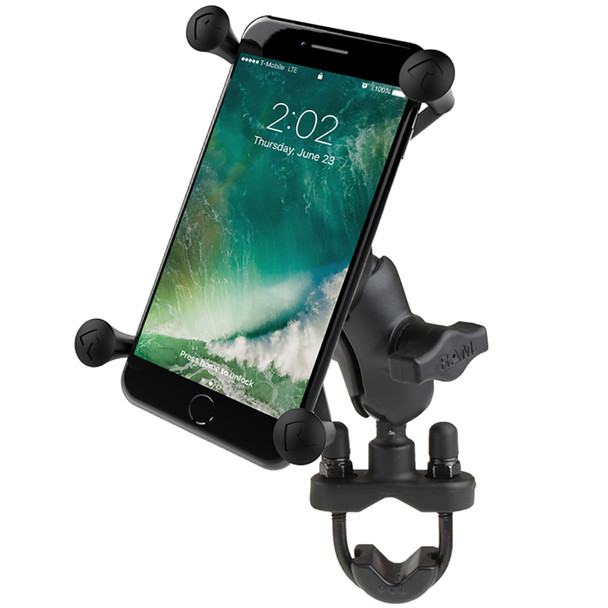

RAM Mounting Systems X-Grip Large Phone Mount with Handlebar U-Bolt Base (Part RAM-B-149Z-A-UN10U)

X-Grip Large Phone Mount with Handlebar U-Bolt Base

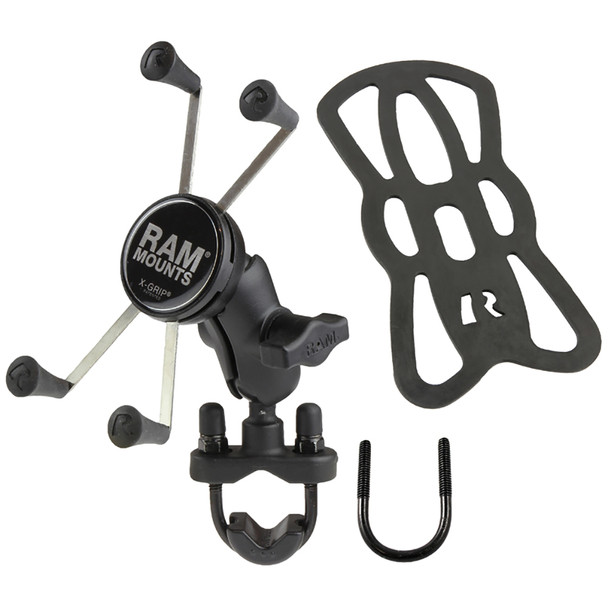

The RAM-B-149Z-A-UN10U consists of a zinc coated u-bolt base, short double socket arm and universal spring loaded X-Grip IV cradle for large phones and phablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip IV cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications:

Includes:

• (QTY. 1), Optional Tether Included

U-Bolt Dimensions:

• Accommodates rails from 0.5" to 1.25" in diameter

Cradle Dimensions:

• Minimum Width = 1.75" (Minimum Height = 5.5")


• Maximum Width = 4.5" (Minimum Height = 3.25")


• Depth = 0.875"


• Material: Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components and High Strength Composite


• Ball Size: B Size 1" Rubber Ball


• Note: The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.


• Weight: 0.75 lbs.

The RAM Mounting Systems X-Grip Large Phone Mount with Handlebar U-Bolt Base offers a versatile and secure solution for mounting large smartphones and phablets on your motorcycle, bicycle, or ATV. This mount features a robust zinc-coated U-bolt base designed to fit handlebars with diameters ranging from 0.5 inches to 1.25 inches, providing a customizable fit for various vehicle types. The included composite rail adapter allows for narrowing the rail width to a minimum of 0.5 inches, ensuring compatibility with a wide range of handlebars. Constructed from marine-grade aluminum, stainless steel, and high-strength composite materials, this mount is built to withstand outdoor conditions while maintaining durability and strength. The 1-inch rubber ball system offers nearly infinite adjustment points at both ends of the double socket arm, enabling you to find the perfect viewing angle for safe navigation and easy access to your device. The spring-loaded X-Grip IV cradle is designed to expand and contract, accommodating devices with widths from 1.75 inches to 4.5 inches and heights from 3.25 inches to 5.5 inches, making it suitable for various large phones and phablets. Included with the mount is a device tether, highly recommended for outdoor applications to ensure your device remains secure during vigorous riding or rough terrain. The mount's compact design, weighing just 0.75 pounds, makes it a practical addition to your vehicle's accessories, combining strength, flexibility, and ease of installation. Whether you're navigating city streets or exploring off-road trails, this RAM mount provides a reliable and adjustable solution for your mobile device needs, ensuring it stays accessible and protected during your adventures.

Features:

• U-Bolt Dimensions: Accommodates handlebars from 0.5" to 1.25" in diameter

• Cradle Adjustment: Fits devices with widths from 1.75" to 4.5" and heights from 3.25" to 5.5"

• Material: Marine-grade aluminum, stainless steel components, and high-strength composite for durability

• Ball Size: 1-inch rubber ball for nearly infinite adjustment points

• Spring-Loaded X-Grip IV Cradle: Expands and contracts for a custom fit on large phones and phablets

• Included Tether: Recommended for outdoor use to secure your device during vigorous riding
