Description
Navigator Compass
Features:
- 4 1/2 (115 mm) Ritchie CombiDial and Built-in Inclinometer
- When mounting this Compass to a bulkhead that is NOT perpendicular (90 angle) to the center-line of the boat and/or NOT vertical (90 angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.
- Easily Installed, Fits 5.75 (146 mm) Mounting Hole
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Fiberglass Reinforced Bowl
- 45 degree Lubber Lines
- Exclusive Built-in 12v Amber LED Lighting
- Built-in Compensators to Easily Adjust for Deviation
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)
Notes:
12v lighting standard - 24 32v lighting options are available.

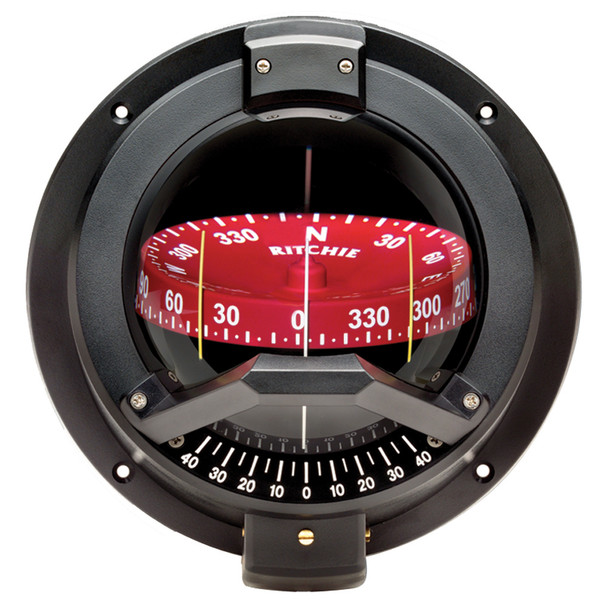

The Ritchie BN-202 Navigator Compass is a precision instrument designed for reliable navigation aboard boats. Featuring a 4 1/2 inch (115 mm) Ritchie CombiDial and an integrated inclinometer, this compass provides accurate directional readings even in challenging conditions. Its fiberglass reinforced bowl ensures durability and resistance to harsh marine environments, making it suitable for long-term use. The internal gimbal system offers maximum stability during adverse pitch and roll, ensuring consistent performance regardless of vessel movement. The scientifically matched sapphire jewel and hardened steel pivot dial movement contribute to precise and smooth operation. Equipped with built-in compensators, the compass can be easily adjusted for deviation, maintaining accuracy over time. The built-in 12V amber LED lighting offers excellent visibility during nighttime navigation, with optional 24V and 32V lighting available for different electrical systems. Installation is straightforward, fitting a 5.75 inch (146 mm) mounting hole, with guidelines provided for non-perpendicular bulkhead mounts using a fairing block. The compass is fully repairable and comes with a 5-year Ritchie warranty, ensuring peace of mind for users. Weighing approximately 2 pounds 5 ounces (1.05 kg), it is designed for both performance and durability in demanding marine environments. For detailed installation instructions and maintenance guidelines, refer to the online owner’s manual available at the provided link.
Features:
- 4 1/2 inch (115 mm) Ritchie CombiDial with built-in inclinometer
- Suitable for mounting on angled or non-perpendicular bulkheads with a fairing block
- Easy installation fitting a 5.75 inch (146 mm) mounting hole
- Internal gimbal system for maximum stability during pitch and roll
- Scientifically matched sapphire jewel and hardened steel pivot dial movement
- Fiberglass reinforced bowl for enhanced durability
- 45-degree lubber lines for precise navigation
- Built-in 12V amber LED lighting with optional 24V and 32V lighting options
- Built-in compensators for easy deviation adjustment
- Fully repairable with a 5-year Ritchie warranty
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/10349OM.pdf |
