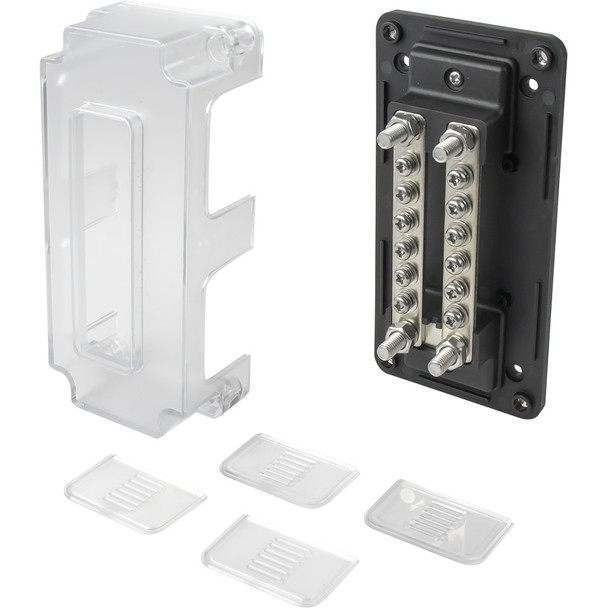

Sea-Dog Dual Buss Bar with Cover - 12 Terminals for DC and AC Distribution

Dual Buss Bar with Cover - 12 Terminals

This dual bus bar is designed for DC positive or negative distribution on one block or AC neutral and safety ground collection on one block. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.

Features:

• Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals per buss


• Installs with four #8 FH fasteners (included)


• 48VDC, 150A per buss; 300VAC, 150A per buss


• CE and RoHS compliant

Specifications:

• Terminals: 12


• Length (inch): 5-1/2"


• Width (inch): 2-3/4"


• Depth (inch): 1-11/16"


• Max. Amps: 150


• Fastener: #8 FH


• Weight: 0.59 lb.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Sea-Dog Dual Buss Bar with Cover (Part Number 426693-3) provides a reliable solution for DC positive or negative distribution and AC neutral and safety ground collection in your electrical system. Crafted from corrosion-resistant tin-plated copper and durable ABS with a polycarbonate cover, this bus bar ensures longevity and safety in demanding environments. Its compact design makes it ideal for tight spaces while maintaining high current capacity and easy installation. The dual bus bar features twelve terminals, including two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals, offering versatile connection options for various wiring configurations. Each bus requires four #8 flat-head fasteners for secure mounting, which are included with the unit. With a maximum current rating of 150 amps at 48VDC and 300VAC, it supports substantial power loads while maintaining compliance with CE and RoHS standards. The bus bar's dimensions provide a compact footprint, making it suitable for a wide range of electrical applications. Its lightweight design ensures ease of handling during installation without sacrificing durability or electrical performance. Whether used in marine, industrial, or RV applications, this bus bar simplifies wiring and enhances safety by organizing multiple circuits onto a single, reliable distribution point. The construction and design of this product adhere to rigorous safety and environmental standards, providing peace of mind in various operational contexts. Overall, the Sea-Dog Dual Buss Bar offers a high-quality, efficient solution for managing electrical connections with ease and safety, backed by robust materials and comprehensive features designed for demanding use. Please note the product may contain chemicals known to the State of California to cause health issues, and users should review safety warnings at P65Warnings.ca.gov.

Features:

• Includes two 1/4"-20 stainless steel stud terminals and six #8-32 stainless steel screw terminals for versatile wiring

• Constructed of corrosion-resistant tin-plated copper and durable ABS with polycarbonate cover for long-lasting performance

• Supports 48VDC and 300VAC at 150A maximum, suitable for high-current electrical applications

• Easy installation with four included #8 flat-head fasteners, ensuring secure mounting

• Compact design with dimensions that optimize space without compromising electrical capacity

• CE and RoHS compliant for safety and environmental standards
