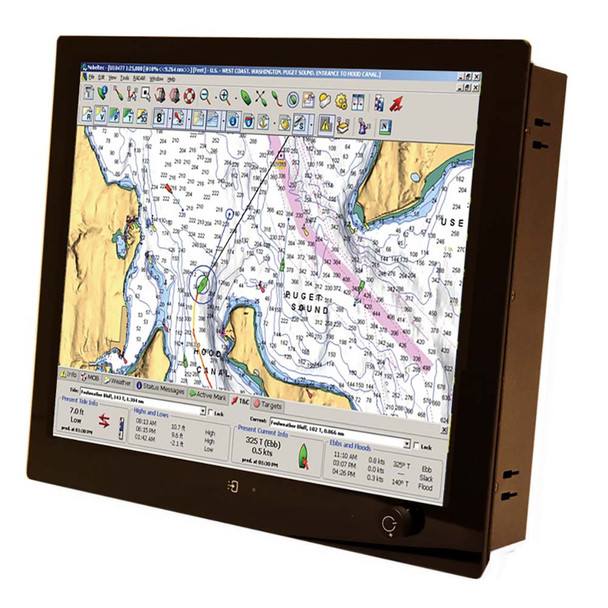

Seatronx 17-Inch Pilothouse Touch Screen Display with Vesa & Panel Mounting

17" Pilothouse Touch Screen Display

Seatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling.

The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.

Features:

• Mounting - Panel Mount , Vesa Mount


• Dimensions - 15.62" x 13.46" x 2.28"


• Cutout Dimensions - 14.92" x 12.75" x 2.40"


• Projected Capacitive Touch


• Optical Bonding


• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 17"


• Native Resolution (Pixels) - 1280x1024


• Contrast Ratio - 1000:1


• Brightness - 350


• Viewing Angle (left, right) - 85, 85


• Viewing Angle (up, down) - 80, 80


• Backlight Dimming - 0 - max


• Backlight Lifetime (Hrs) - 50,000


• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp


• Power Source - 9-34V + and -


• Power Consumption (AMPS @ 24VDC) - 3


• Inlet Plug DC Power - Screw Terminal


• Sealing Front - IP68 with Potentiometer


• Operating Temperature (C) - -30 to 85


• Storage Temperature (C) - -30 to 85

The Seatronx PHT-17 is a rugged and stylish 17-inch pilothouse touch screen display designed for marine and industrial environments. Featuring a high-resolution 1280x1024 pixel display, it delivers crisp visuals with a contrast ratio of 1000:1 and a brightness of 350 nits, ensuring clear visibility in various lighting conditions. The optical bonding and projected capacitive touch technology provide responsive and durable operation, even in harsh settings. This display is ideal for vessel bridges where reliable control and visibility are paramount. Its IP68 front sealing enhances durability against dust and water ingress, making it suitable for demanding marine environments. The PHT-17 supports multiple input options including HDMI, DVI, VGA, and composite, offering versatile connectivity options for navigation and control systems. The display is powered via a 9-34V DC supply, with a power consumption of approximately 3 amps at 24VDC, making it energy-efficient and easy to integrate into existing systems. With a wide viewing angle of 85 degrees horizontally and 80 degrees vertically, it ensures excellent visibility from various positions. The device also features front panel dimming for nighttime use and can be operated within a temperature range of -30°C to 85°C, suitable for a wide range of environmental conditions. Optional remote control capability adds convenience for system operators. The display supports Vesa and panel mounting options for flexible installation, and its robust construction ensures long-term reliability with an estimated backlight lifetime of 50,000 hours. Whether for navigation, system monitoring, or control, the Seatronx PHT-17 delivers a combination of rugged design, high performance, and easy integration for demanding applications.

Features:

• Mounting options include panel mount and Vesa mount for flexible installation

• 17-inch diagonal display with 1280x1024 native resolution for sharp visuals

• High contrast ratio of 1000:1 and brightness of 350 nits for excellent visibility

• Projected capacitive touch with optical bonding for durability and responsiveness

• Front IP68 sealing with potentiometer for dust and water resistance

• Multiple input terminals including HDMI, DVI, VGA, and composite for versatile connectivity

• Wide viewing angles of 85 degrees left/right and 80 degrees up/down for maximum visibility

• Power input range of 9-34V DC with a power consumption of 3 amps at 24VDC

• Supports optional remote control for convenient operation

• Operational temperature range from -30°C to 85°C, suitable for demanding environments
