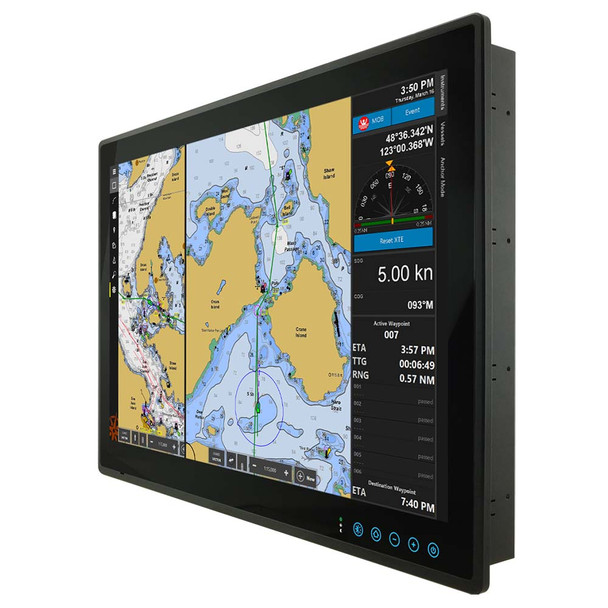

Seatronx 26-inch Commercial Touch Screen Display (Part Number: CD-26T)

26" Commercial Touch Screen Display

Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).

Features:

• Mounting - Panel Mount , Vesa Mount


• Dimensions - 24.44" x 17.02" x 3.66"


• Cutout Dimensions - 23.54" x 16.06"


• Projected Capacitive touch


• Optional ECDIS Color Calibration


• 2x 2W Speakers


• 77 dB - 80 dB buzzer

Technical Specifications:

• Diagonal (active area) Inch - 26"


• Native Resolution (Pixels) - 1920x1200


• Contrast Ratio - 1500:1


• Brightness - 350


• Viewing Angle (left, right) - 89, 89


• Viewing Angle (up, down) - 89, 89


• Backlight Dimming - -0 (3 Stage ECDIS Option)


• Inputs - 3 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2


• Power Source - 9-36VDC Isolated power supply 80W (Max)


• Power on/off dimming control - Front Bezel


• IP Rating - IP65 Front


• Operating Temperature (C) - -15 to 55

The Seatronx 26-inch Commercial Touch Screen Display offers a high-performance solution for electronic chart display and information systems (ECDIS). Designed to meet International Maritime Organization (IMO) compliance regulations, this display ensures reliable and accurate navigation information for maritime operations. Its color calibration features provide optimal viewing of electronic charts, and the capacitive touch interface allows for quick access to functions and display control, including seamless switching between day, dusk, and night modes. The robust IP65 front rating enhances durability in demanding marine environments, making it suitable for professional maritime applications. Its multiple input options, including HDMI, DisplayPort, and VGA, ensure versatile connectivity to various navigation and control systems, while the built-in speakers and buzzer facilitate effective communication and alerts onboard.

Constructed with a 26-inch diagonal active area and a native resolution of 1920x1200 pixels, the display offers sharp visuals with a contrast ratio of 1500:1 and a brightness of 350 nits. The wide viewing angles of 89 degrees in all directions guarantee clear visibility from multiple positions, which is vital for crew members in dynamic environments. The display supports optional ECDIS color calibration, further enhancing chart readability in different lighting conditions. Its power requirements are flexible, operating on a 9-36VDC isolated power supply with a maximum power draw of 80W. The unit’s mounting options include panel mount and VESA mount, facilitating flexible installation in various shipboard configurations. Designed to operate in temperatures from -15°C to 55°C, the Seatronx 26-inch display ensures consistent performance across diverse maritime climates.

This commercial-grade touch screen display combines advanced features, durable construction, and versatile connectivity to meet the demanding needs of maritime navigation and information systems, making it an essential component for modern marine operations.

Features:

• Mounting options include panel mount and VESA mount for flexible installation

• 26-inch diagonal active area with 1920x1200 native resolution for sharp visuals

• Projected capacitive touch interface for responsive control and quick function access

• Supports optional ECDIS color calibration for enhanced chart visibility

• IP65 front rating provides durability against harsh marine environments

• Multiple input options including HDMI, DisplayPort, VGA, and DVD-D for versatile connectivity

• Built-in 2W speakers and 77-80 dB buzzer for effective onboard communication

• Wide viewing angles of 89 degrees in all directions for optimal visibility from multiple positions

• Operating temperature range from -15°C to 55°C ensures reliable performance in diverse climates

• Power requirements of 9-36VDC with an 80W maximum power draw for efficient operation
