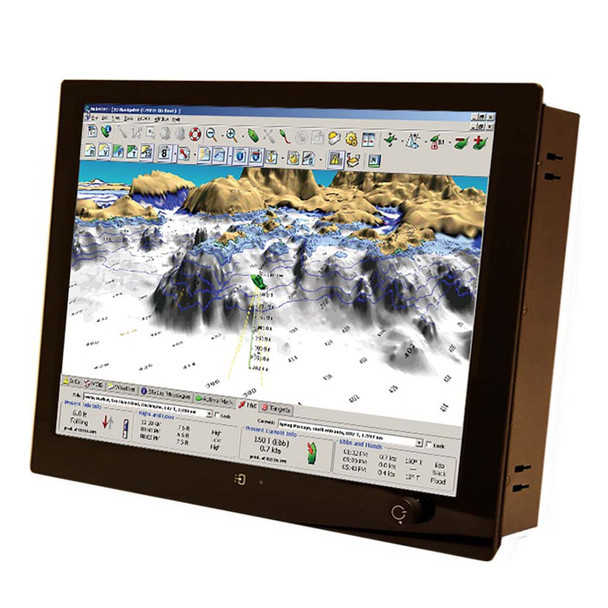

Seatronx SRT-185W 18.5-Inch Sunlight Readable Touch Screen Display with VESA Mount

18.5" Wide Screen Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12 to 27.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmins fully integrated GPSMAP 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount


• Dimensions - 18.35" x 12.1" x 2.40"


• Cutout Dimensions - 17.65" x 11.39" x 2.40"


• Projected Capacitive Touch


• Optical Bonding


• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 18.5"


• Native Resolution (Pixels) - 1920x1200


• Contrast Ratio - 1000:1


• Brightness - 1500


• Viewing Angle (left, right) - 89, 89


• Viewing Angle (up, down) - 89, 89


• Backlight Dimming - 0 - max


• Backlight Lifetime (Hrs) - 50,000


• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp


• Power Source - 9-34V + and -


• Power Consumption (AMPS @ 24VDC) - 3.5


• Inlet Plug DC Power - Screw Terminal


• Sealing Front - IP68 with Potentiometer


• Operating Temperature (C) - 0 to 70


• Storage Temperature (C) - -20 to 70

The Seatronx SRT-185W is an 18.5-inch wide screen display designed for durability and visibility in demanding environments. Featuring a sunlight-readable display with 1920x1200 resolution, it provides clear visuals even in bright outdoor conditions. The optical bonding and projected capacitive touch technology ensure responsive operation and excellent touch accuracy, making it suitable for navigation, control panels, and other critical applications. Its IP68 sealing rating guarantees protection against dust and water, ensuring reliable performance in harsh conditions. The display's compatibility with VESA and panel mounting options offers flexible installation options for various setups. Operating within a temperature range of 0 to 70°C, the SRT-185W is built for reliable outdoor usage, with a backlight lifetime of approximately 50,000 hours. It supports multiple input terminals including HDMI, DVI, VGA, and composite, enabling seamless connectivity with different systems. Power is supplied via a 9-34V DC source, with a typical power consumption of 3.5 amps at 24VDC. Optional remote control capability enhances ease of operation and integration into existing control systems. This rugged display pairs well with Garmin's GPSMAP 8700 processors, offering an integrated navigation solution for marine, industrial, or outdoor applications. Its robust construction, high brightness, and multi-input flexibility make it an ideal choice for professionals requiring a durable, high-performance display in challenging environments.

Features:

• Mounting - Panel Mount, VESA Mount

• Display Size - 18.5-inch diagonal with 1920x1200 resolution

• Sunlight Readable - Brightness of 1500 nits for outdoor visibility

• Projected Capacitive Touch - Responsive and durable touch interface

• Optical Bonding - Enhances contrast and reduces glare

• Sealing - IP68 rated for dust and water resistance

• Input Connectivity - HDMI, DVI, VGA, Composite

• Power Supply - 9-34V DC with screw terminal connection

• Operating Temperature - 0 to 70°C for outdoor and industrial environments

• Backlight Lifetime - Approximately 50,000 hours

• Optional Remote Control - For enhanced operation and integration
