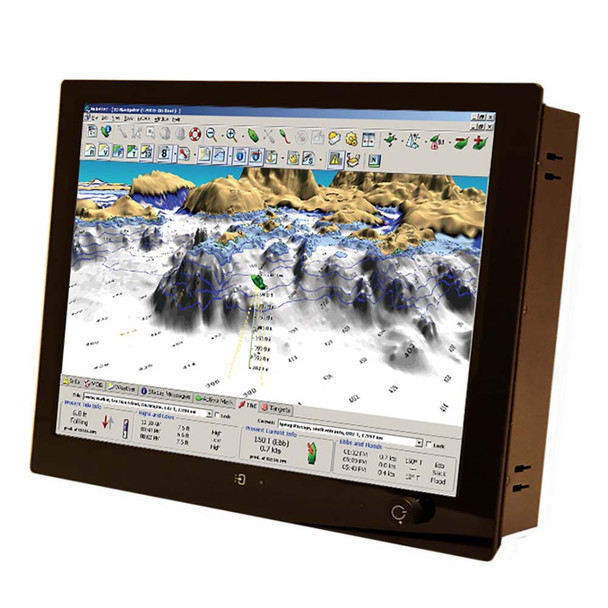

Seatronx SRT-24W-1080 24-Inch Sunlight Readable Touch Screen Display with VESA Mount

24" Wide Screen Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12 to 27.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmins fully integrated GPSMAP 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount


• Dimensions - 23.57" x 15.07" x 2.40"


• Cutout Dimensions - 22.86" x 14.36" x 2.40"


• Projected Capacitive Touch


• Optical Bonding


• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 24"


• Native Resolution (Pixels) - 1920x1080


• Contrast Ratio - 1000:1


• Brightness - 1000


• Viewing Angle (left, right) - 89, 89


• Viewing Angle (up, down) - 89, 89


• Backlight Dimming - 0 - max


• Backlight Lifetime (Hrs) - 50,000


• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp


• Power Source - 9-34V + and -


• Power Consumption (AMPS @ 24VDC) - 3.5


• Inlet Plug DC Power - Screw Terminal


• Sealing Front - IP68 with Potentiometer


• Operating Temperature (C) - 0 to 50


• Storage Temperature (C) - -20 to 60

The Seatronx SRT-24W-1080 is a 24-inch wide screen display designed for rugged environments and demanding applications. Featuring a sunlight-readable display with a native resolution of 1920x1080 pixels, this touch screen provides excellent clarity and visibility even in direct sunlight. Its optical bonding technology enhances screen durability and reduces glare, making it suitable for outdoor or harsh conditions. The display's high contrast ratio of 1000:1 and wide viewing angles ensure consistent image quality from multiple perspectives. It is compatible with various input terminals including HDMI, DVI, VGA, and composite, offering flexible connectivity options for diverse systems. The SRT-24W-1080 is built with a sealed IP68 front panel, making it resistant to dust and water ingress, and supports operating temperatures from 0 to 50°C, ensuring reliable operation in a variety of environments. Its power requirements are compatible with 9-34V DC sources, and it features a screw terminal inlet for secure power connections. Designed for easy installation, it supports both panel mounting and VESA mounting solutions. Optional remote control functionality adds further convenience for remote operation. The display's backlight has a lifespan of approximately 50,000 hours, providing long-term service with minimal maintenance. This rugged display is ideal for marine, industrial, and transportation applications where durability and visibility are critical.

Features:

• Mounting options include panel mount and VESA mount for flexible installation

• High-resolution 24-inch display with 1920x1080 pixels for sharp image quality

• Sunlight-readable screen with optical bonding for reduced glare and enhanced durability

• Projected capacitive touch provides responsive and accurate touch functionality

• Sealed IP68 front panel ensures protection against dust and water ingress

• Wide viewing angles of 89 degrees in all directions for consistent visibility

• Multiple input terminals including HDMI, DVI, VGA, and composite for versatile connectivity

• Compatible with 9-34V DC power sources with screw terminal power inlet

• Long backlight lifespan of up to 50,000 hours for reliable, long-term use

• Optional remote control support for remote operation and management
