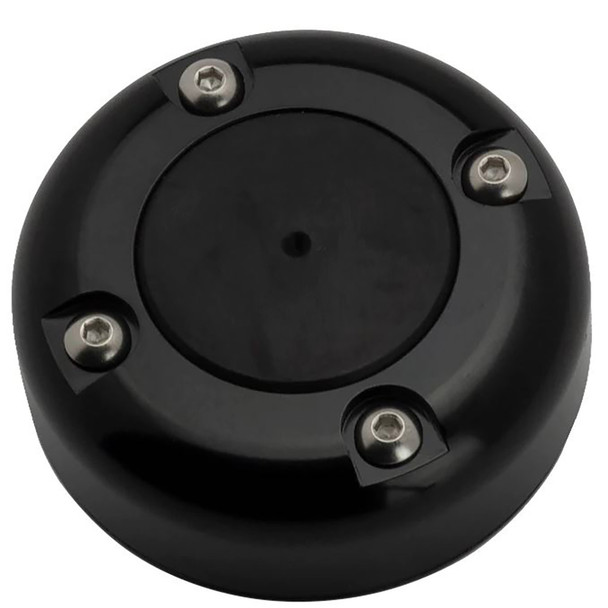

Seaview Black Plastic Vertical Cable Seal for Wires Up to 1.08 Inches (Part CG30PB)

Black Plastic Vertical Cable Seal for Wire Up to 27.5mm/1.08"

The Seaview Cable Seals (also known as CableClams, Cable Glands, or Deck Seals) provide waterproof cable routing. These are made of very strong plastic or marine grade 316 stainless steel and come in a variety of colors and finishes. Seaview cable seals fit a wide range of cables and connectors. Seaview Cable Seal options for 17mm to 34mm (0.67 to 1.38) connectors, making it ideal for almost every installation.

Features:

• No need to remove connectors - The split seal design eliminates the need to remove cable connectors during installation.


• Watertight installation - Tapered rubber seal forms watertight installation. The base gasket is also provided for a clean, watertight installation. Waterproof rating of IPX6 and IPX7


• Improved shape and design - Low profile design for a strong, impact-resistant, and clean installation. No sharp edges


• Drill tubes included - Each cable seal comes with 4 brass drill tubes (6, 8, 10 12mm). These are used to drill very clean and easy holes vs a typical drill bit. Some other brands do come with pre-drilled rubbers but we choose to include metal drill tubes that can be recycled or reused when finished vs the extra rubber pieces that will end up in the landfill from others

Note:

*All Seaview Cable Seals (including the round Cable Seals) will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.

The Seaview CG30PB Black Plastic Vertical Cable Seal is designed to provide a secure, waterproof solution for routing cables up to 1.08 inches in diameter. Crafted from durable plastic, this seal is ideal for marine, industrial, and outdoor applications where waterproof integrity is essential. Its simple split design allows for quick installation without needing to disconnect or remove existing cable connectors, saving time and reducing potential damage. The tapered rubber gasket ensures a tight, waterproof seal rated at IPX6 and IPX7, making it suitable for harsh environments and exposure to water, rain, or splashes. A base gasket is included for a clean, professional finish, and the low-profile design makes for an impact-resistant and unobtrusive installation that maintains a sleek appearance.

Features:

• No need to remove connectors: Split seal design allows for easy installation without disconnecting cables.

• Watertight installation: Tapered rubber seal and base gasket provide a secure, waterproof fit rated at IPX6 and IPX7.

• Impact-resistant and low profile: Designed to withstand impact while maintaining a clean and unobtrusive appearance.

• Includes drill tubes: Comes with four reusable brass drill tubes (6mm, 8mm, 10mm, 12mm) for clean, precise hole drilling, reducing debris and waste.
